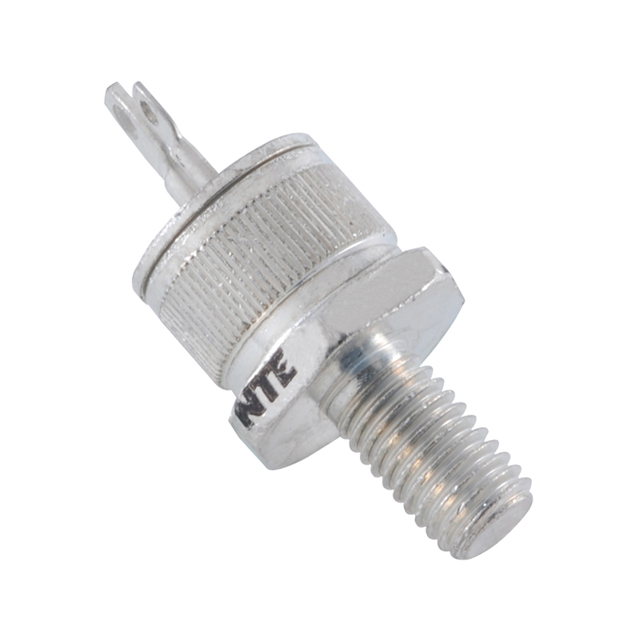

NTE5548

Manufacturer :

NTE Electronics, Inc.

Product Category :

Thyristors - SCRs

Configuration :

Single

RMS On-state Current-Max :

35 A

Current - Gate Trigger (Igt) (Max) :

30 mA

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

DC Gate Trigger Current-Max :

30 mA

Holding Current-Max :

50 mA

Qualification Status :

Not Qualified

Repetitive Peak Reverse Voltage :

800 V

SCR Type :

Standard Recovery

Reach Compliance Code :

Unknown

Subcategory :

Silicon Controlled Rectifiers

Package Shape :

Round

Series :

-

JEDEC-95 Code :

TO-48

JESD-30 Code :

O-MUPM-D2

Current - Off State (Max) :

2 mA

Voltage - Gate Trigger (Vgt) (Max) :

2 V

Package / Case :

TO-208AA, TO-48-3, Stud

Package :

Bag

Supplier Device Package :

TO-48

Voltage - Off State :

800 V

Non-Repetitive Pk On-state Cur :

300 A

Manufacturer :

NTE Electronics

Terminal Form :

Solder Lug

HTS Code :

8541.30.00.80

Number of Terminals :

2

Case Connection :

ANODE

Number of Elements :

1

Surface Mount :

No

DC Gate Trigger Voltage-Max :

2 V

Product Status :

Active

Operating Temperature :

-40°C ~ 150°C

Trigger Device Type :

SCR

Terminal Position :

UPPER

Repetitive Peak Off-state Voltage :

800 V

Current - On State (It (RMS)) (Max) :

35 A

Mounting Type :

Stud Mount

Current - Non Rep. Surge 50, 60Hz (Itsm) :

300A @ 60Hz
