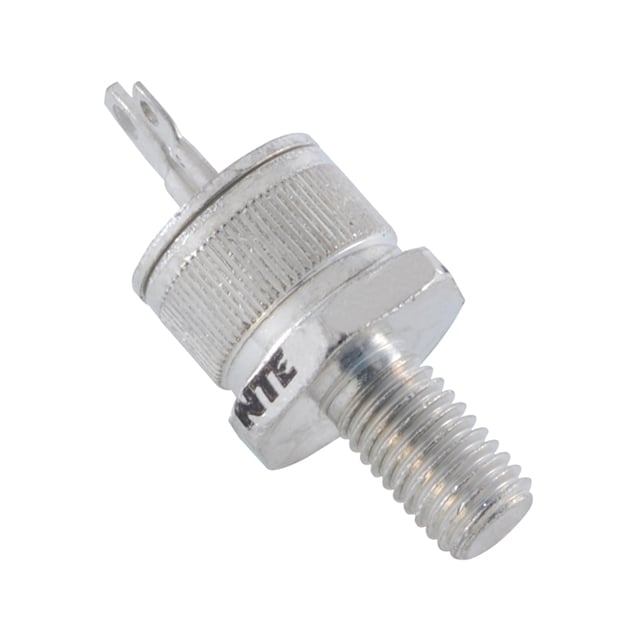

NTE5531

Manufacturer :

NTE Electronics, Inc.

Product Category :

Thyristors - SCRs

Package / Case :

TO-208AA, TO-48-3, Stud

Current - On State (It (RMS)) (Max) :

25 A

Supplier Device Package :

TO-48

Max Operating Temperature :

125 °C

Max Repetitive Reverse Voltage (Vrrm) :

800 V

Manufacturer :

NTE Electronics

Current - Gate Trigger (Igt) (Max) :

40 mA

Mounting Type :

Stud Mount

Current - Non Rep. Surge 50, 60Hz (Itsm) :

150A @ 60Hz

Voltage - Off State :

800 V

Min Operating Temperature :

-65 °C

RoHS :

Compliant

Product Status :

Active

Series :

-

Mount :

Stud

SCR Type :

Standard Recovery

Package :

Bag

Voltage - Gate Trigger (Vgt) (Max) :

3 V

Operating Temperature :

-65°C ~ 125°C (TJ)

Number of Pins :

3

Voltage - On State (Vtm) (Max) :

1.7 V

Current - On State (It (AV)) (Max) :

16 A
