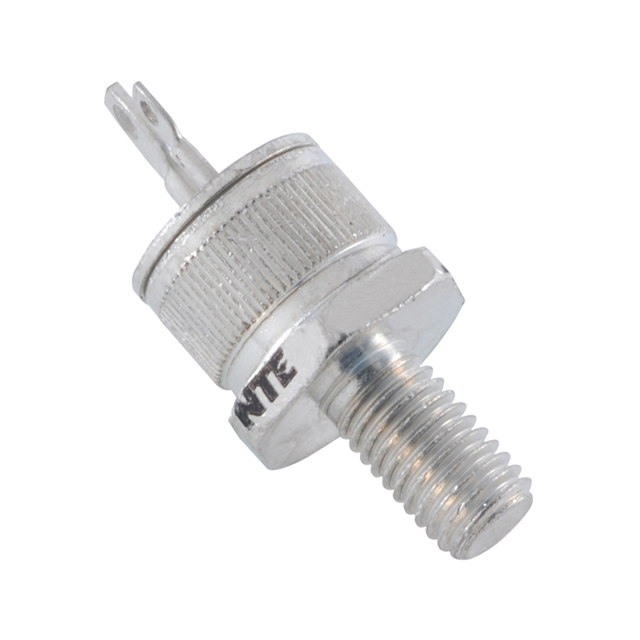

NTE5530

Manufacturer :

NTE Electronics, Inc.

Product Category :

Thyristors - SCRs

Current - Non Rep. Surge 50, 60Hz (Itsm) :

150A @ 60Hz

RMS On-state Current-Max :

25 A

Voltage - Gate Trigger (Vgt) (Max) :

3 V

Manufacturer :

NTE Electronics

Reach Compliance Code :

Unknown

Subcategory :

Silicon Controlled Rectifiers

Trigger Device Type :

SCR

Terminal Position :

UPPER

Repetitive Peak Off-state Voltage :

700 V

SCR Type :

Standard Recovery

Current - On State (It (AV)) (Max) :

16 A

Product Status :

Active

Surface Mount :

No

Non-Repetitive Pk On-state Cur :

150 A

Mounting Type :

Stud Mount

DC Gate Trigger Voltage-Max :

3 V

Terminal Form :

Solder Lug

Number of Elements :

1

Voltage - On State (Vtm) (Max) :

1.7 V

Series :

-

Voltage - Off State :

700 V

Package :

Bag

Package Shape :

Round

Package / Case :

TO-208AA, TO-48-3, Stud

Case Connection :

ANODE

HTS Code :

8541.30.00.80

RoHS :

Compliant

Holding Current-Max :

50 mA

Qualification Status :

Not Qualified

JEDEC-95 Code :

TO-48

DC Gate Trigger Current-Max :

40 mA

Configuration :

Single

Current - On State (It (RMS)) (Max) :

25 A

Operating Temperature :

-65°C ~ 125°C (TJ)

JESD-30 Code :

O-MUPM-D2

Repetitive Peak Reverse Voltage :

700 V

Current - Gate Trigger (Igt) (Max) :

40 mA

Number of Terminals :

2

Supplier Device Package :

TO-48
