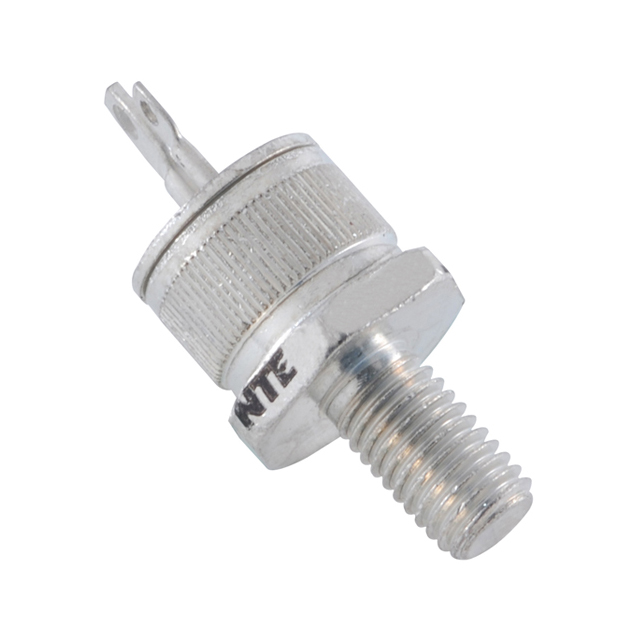

NTE5527

Manufacturer :

NTE Electronics, Inc.

Product Category :

Thyristors - SCRs

RoHS :

Compliant

Current - On State (It (RMS)) (Max) :

25 A

Surface Mount :

No

Voltage - Off State :

400 V

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Current - On State (It (AV)) (Max) :

16 A

Number of Elements :

1

Case Connection :

ANODE

Repetitive Peak Reverse Voltage :

400 V

Operating Temperature :

-65°C ~ 125°C (TJ)

Manufacturer :

NTE Electronics

Trigger Device Type :

SCR

DC Gate Trigger Voltage-Max :

3 V

Package Shape :

Round

Product Status :

Active

Holding Current-Max :

50 mA

Terminal Position :

UPPER

Max Operating Temperature :

125 °C

JEDEC-95 Code :

TO-48

Subcategory :

Silicon Controlled Rectifiers

Package :

Bag

SCR Type :

Standard Recovery

Terminal Form :

Solder Lug

DC Gate Trigger Current-Max :

40 mA

Min Operating Temperature :

-65 °C

RMS On-state Current-Max :

25 A

Reach Compliance Code :

Unknown

Voltage - Gate Trigger (Vgt) (Max) :

3 V

Supplier Device Package :

TO-48

Mount :

Stud

Series :

-

Number of Pins :

3

Mounting Type :

Stud Mount

JESD-30 Code :

O-MUPM-D2

Configuration :

Single

Number of Terminals :

2

Current - Non Rep. Surge 50, 60Hz (Itsm) :

150A @ 60Hz

Qualification Status :

Not Qualified

Max Repetitive Reverse Voltage (Vrrm) :

400 V

Package / Case :

TO-208AA, TO-48-3, Stud

HTS Code :

8541.30.00.80

Repetitive Peak Off-state Voltage :

400 V

Voltage - On State (Vtm) (Max) :

1.7 V

Current - Gate Trigger (Igt) (Max) :

40 mA

Non-Repetitive Pk On-state Cur :

150 A
