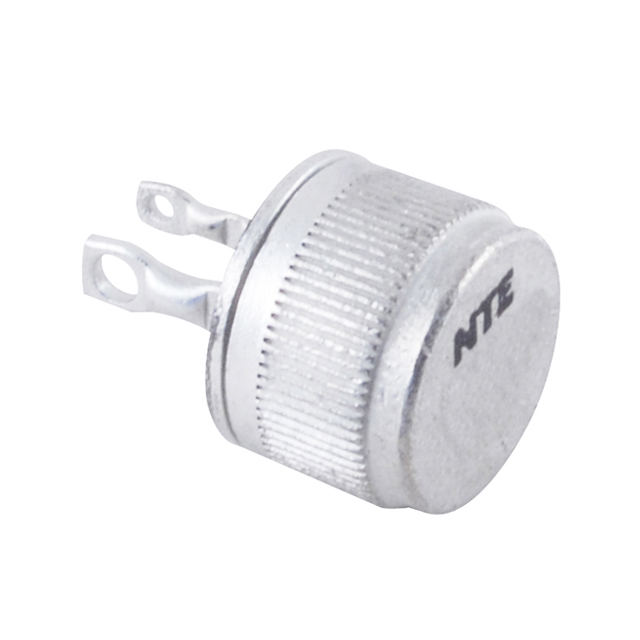

NTE5517

Manufacturer :

NTE Electronics, Inc.

Product Category :

Thyristors - SCRs

Voltage - Off State :

200 V

Terminal Form :

Solder Lug

Non-Repetitive Pk On-state Cur :

300 A

SCR Type :

Standard Recovery

JESD-30 Code :

O-MUPF-D2

Series :

-

Terminal Position :

UPPER

Trigger Device Type :

SCR

Package Shape :

Round

Current - Non Rep. Surge 50, 60Hz (Itsm) :

350A @ 60Hz

Surface Mount :

No

Configuration :

Single

Manufacturer :

NTE Electronics

Case Connection :

ANODE

RMS On-state Current-Max :

35 A

Reach Compliance Code :

Unknown

Qualification Status :

Not Qualified

Current - Off State (Max) :

2 mA

Number of Terminals :

2

DC Gate Trigger Current-Max :

25 mA

Package / Case :

Press Fit

Package :

Bag

Mounting Type :

Chassis Mount

ECCN Code :

EAR99

Subcategory :

Silicon Controlled Rectifiers

Voltage - On State (Vtm) (Max) :

1.6 V

Current - Hold (Ih) (Max) :

50 mA

Supplier Device Package :

Press Fit

Operating Temperature :

-40°C ~ 150°C

Product Status :

Active

Voltage - Gate Trigger (Vgt) (Max) :

2 V

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Number of Elements :

1

Current - On State (It (RMS)) (Max) :

35 A

Repetitive Peak Off-state Voltage :

200 V

Holding Current-Max :

50 mA

HTS Code :

8541.30.00.80

Repetitive Peak Reverse Voltage :

200 V

JEDEC-95 Code :

TO-48

DC Gate Trigger Voltage-Max :

2 V

Current - Gate Trigger (Igt) (Max) :

25 mA
