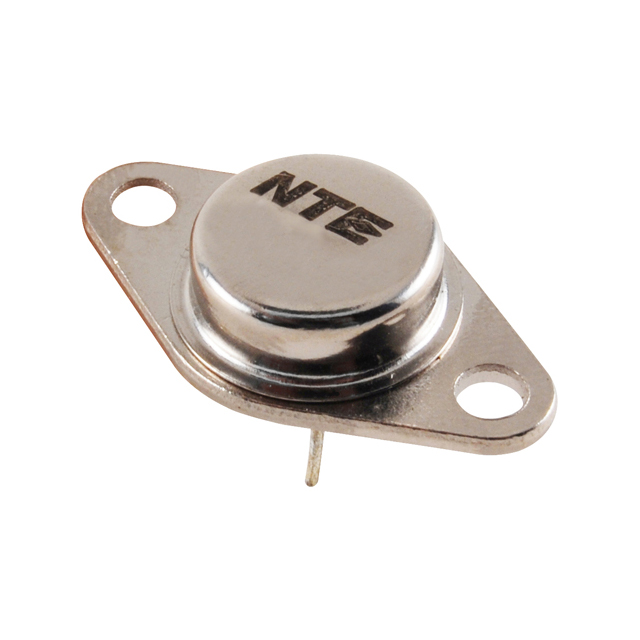

NTE5512

Manufacturer :

NTE Electronics, Inc.

Product Category :

Thyristors - SCRs

Number of Pins :

3

JESD-30 Code :

O-MBFM-P2

Current - Gate Trigger (Igt) (Max) :

15 mA

Current - Non Rep. Surge 50, 60Hz (Itsm) :

60A @ 60Hz

Package :

Bag

Package Shape :

Round

Case Connection :

ANODE

Surface Mount :

No

Max Repetitive Reverse Voltage (Vrrm) :

400 V

Number of Terminals :

2

Current - Hold (Ih) (Max) :

20 mA

Operating Temperature :

-40°C ~ 100°C

Reach Compliance Code :

Unknown

Trigger Device Type :

SCR

Voltage - Gate Trigger (Vgt) (Max) :

2 V

Voltage - Off State :

400 V

Series :

-

Max Operating Temperature :

100 °C

DC Gate Trigger Voltage-Max :

2 V

Holding Current-Max :

20 mA

Number of Elements :

1

Subcategory :

Silicon Controlled Rectifiers

Current - On State (It (RMS)) (Max) :

5 A

Repetitive Peak Off-state Voltage :

400 V

HTS Code :

8541.30.00.80

Configuration :

Single

RoHS :

Compliant

Terminal Position :

BOTTOM

Non-Repetitive Pk On-state Cur :

60 A

Repetitive Peak Reverse Voltage :

400 V

Min Operating Temperature :

-40 °C

SCR Type :

Standard Recovery

RMS On-state Current-Max :

5.024 A

Package / Case :

TO-213AA, TO-66-2

Product Status :

Active

Current - On State (It (AV)) (Max) :

3.2 A

Manufacturer :

NTE Electronics

Mounting Type :

Through Hole

JEDEC-95 Code :

TO-66

Mount :

Through Hole

Terminal Form :

PIN/PEG

Qualification Status :

Not Qualified

Supplier Device Package :

TO-66

DC Gate Trigger Current-Max :

15 mA
