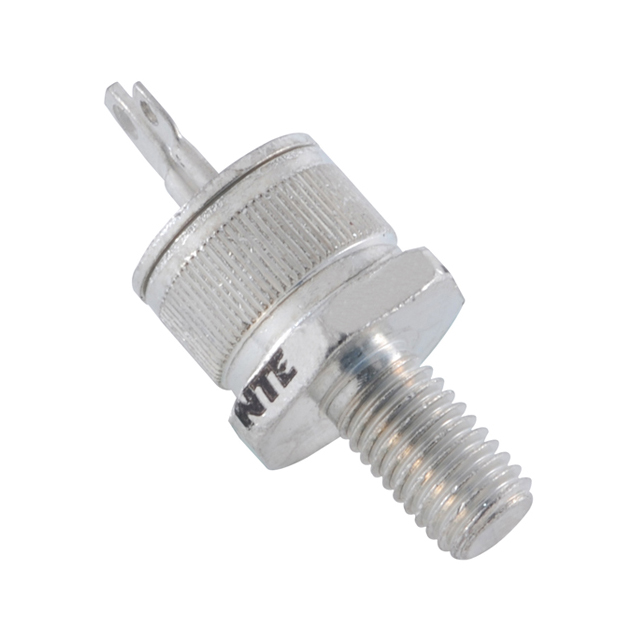

NTE5504

Manufacturer :

NTE Electronics, Inc.

Product Category :

Thyristors - SCRs

Current - Hold (Ih) (Max) :

20 mA

Number of Terminals :

2

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Current - On State (It (AV)) (Max) :

25 A

JESD-30 Code :

O-MUPM-D2

JEDEC-95 Code :

TO-48

Series :

-

Operating Temperature :

-65°C ~ 125°C (TJ)

Repetitive Peak Off-state Voltage :

200 V

Qualification Status :

Not Qualified

Product Status :

Active

Current - Gate Trigger (Igt) (Max) :

25 mA

Voltage - Gate Trigger (Vgt) (Max) :

3 V

Mounting Type :

Stud Mount

Current - Off State (Max) :

10 mA

Manufacturer :

NTE Electronics

Package / Case :

TO-208AA, TO-48-3, Stud

Terminal Position :

UPPER

DC Gate Trigger Voltage-Max :

1.5 V

RMS On-state Current-Max :

25 A

Subcategory :

Silicon Controlled Rectifiers

Voltage - On State (Vtm) (Max) :

1.5 V

Package Shape :

Round

DC Gate Trigger Current-Max :

25 mA

Surface Mount :

No

Reach Compliance Code :

Unknown

HTS Code :

8541.30.00.80

Package :

Bag

Number of Elements :

1

Trigger Device Type :

SCR

Voltage - Off State :

200 V

Case Connection :

ANODE

ECCN Code :

EAR99

Configuration :

Single

Current - Non Rep. Surge 50, 60Hz (Itsm) :

200A @ 60Hz

Non-Repetitive Pk On-state Cur :

150 A

SCR Type :

Standard Recovery

Terminal Form :

Solder Lug

Holding Current-Max :

40 mA

Supplier Device Package :

TO-48
