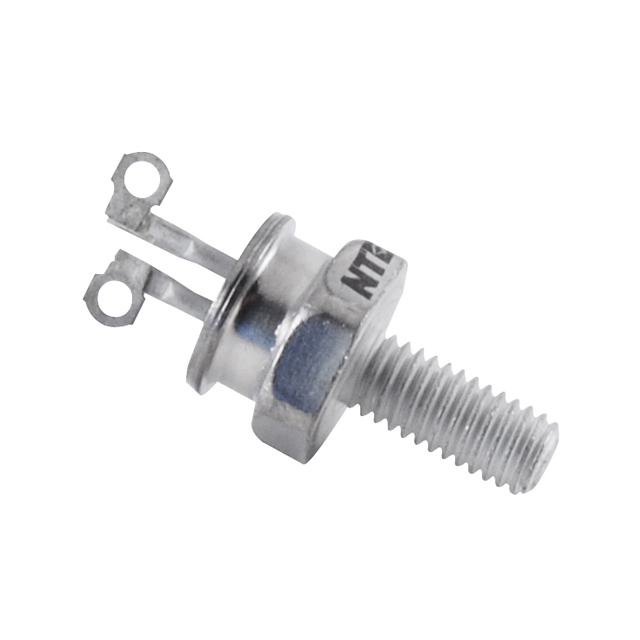

NTE5485

Manufacturer :

NTE Electronics, Inc.

Product Category :

Thyristors - SCRs

Manufacturer :

NTE Electronics

Package Shape :

Round

Supplier Device Package :

TO-64

Subcategory :

Silicon Controlled Rectifiers

Mount :

Stud

Number of Elements :

1

Repetitive Peak Off-state Voltage :

400 V

Current - Gate Trigger (Igt) (Max) :

30 mA

Current Rating :

8 A

Terminal Position :

UPPER

Max Repetitive Reverse Voltage (Vrrm) :

400 V

Package :

Bag

DC Gate Trigger Current-Max :

30 mA

Holding Current-Max :

30 mA

Configuration :

Single

Product Status :

Active

Qualification Status :

Not Qualified

Series :

-

Max Operating Temperature :

100 °C

Voltage Rating (DC) :

400 V

Voltage - Gate Trigger (Vgt) (Max) :

1.5 V

Terminal Form :

Solder Lug

Operating Temperature :

-40°C ~ 100°C (TJ)

Mounting Type :

Stud Mount

Min Operating Temperature :

-40 °C

JEDEC-95 Code :

TO-64

Number of Terminals :

2

RoHS :

Compliant

Repetitive Peak Reverse Voltage :

400 V

DC Gate Trigger Voltage-Max :

1.5 V

HTS Code :

8541.30.00.80

Current - Off State (Max) :

10 µA

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Number of Pins :

3

Reach Compliance Code :

Unknown

Surface Mount :

No

JESD-30 Code :

O-MUPM-D2

Voltage - Off State :

400 V

Non-Repetitive Pk On-state Cur :

100 A

Trigger Device Type :

SCR

Current - On State (It (RMS)) (Max) :

8 A

Case Connection :

ANODE

Package / Case :

TO-208AB, TO-64-3, Stud

Current - Hold (Ih) (Max) :

30 mA

Current - Non Rep. Surge 50, 60Hz (Itsm) :

100A @ 60Hz

RMS On-state Current-Max :

8 A

SCR Type :

Standard Recovery

Voltage - On State (Vtm) (Max) :

2 V
