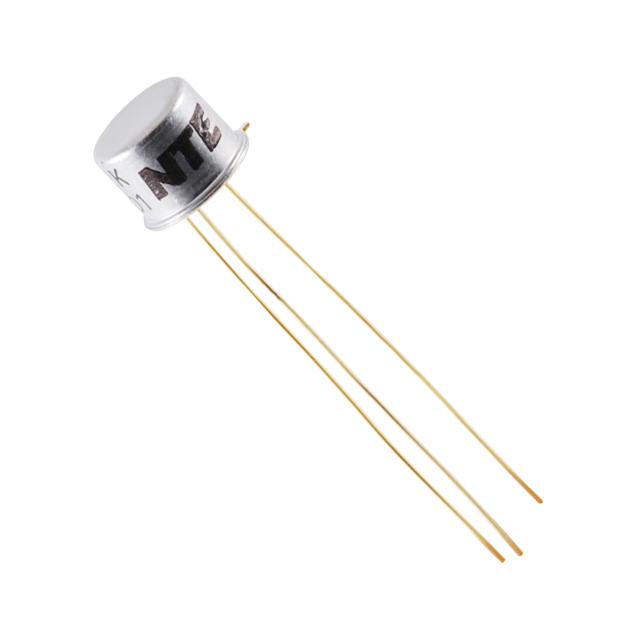

NTE5428

Manufacturer :

NTE Electronics, Inc.

Product Category :

Thyristors - SCRs

Current - Hold (Ih) (Max) :

50 mA

Repetitive Peak Reverse Voltage :

400 V

Reach Compliance Code :

Unknown

Supplier Device Package :

TO-39

Repetitive Peak Off-state Voltage :

400 V

DC Gate Trigger Current-Max :

25 mA

Configuration :

Single

Qualification Status :

Not Qualified

SCR Type :

Standard Recovery

Package Shape :

Round

DC Gate Trigger Voltage-Max :

1.5 V

Trigger Device Type :

SCR

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

RMS On-state Current-Max :

7 A

Surface Mount :

No

Voltage - Gate Trigger (Vgt) (Max) :

1.5 V

Operating Temperature :

-40°C ~ 110°C

Holding Current-Max :

50 mA

Current - Gate Trigger (Igt) (Max) :

25 mA

Current - Non Rep. Surge 50, 60Hz (Itsm) :

80A @ 60Hz

Voltage - Off State :

400 V

Current - On State (It (RMS)) (Max) :

7 A

Package / Case :

TO-205AD, TO-39-3 Metal Can

Number of Elements :

1

JESD-30 Code :

O-MBCY-W3

Manufacturer :

NTE Electronics

Voltage - On State (Vtm) (Max) :

2 V

Subcategory :

Silicon Controlled Rectifiers

Current - Off State (Max) :

1 mA

HTS Code :

8541.30.00.80

Terminal Position :

BOTTOM

Number of Terminals :

3

Mounting Type :

Through Hole

JEDEC-95 Code :

TO-5

Terminal Form :

Wire

Package :

Bag

Product Status :

Active

Non-Repetitive Pk On-state Cur :

100 A
