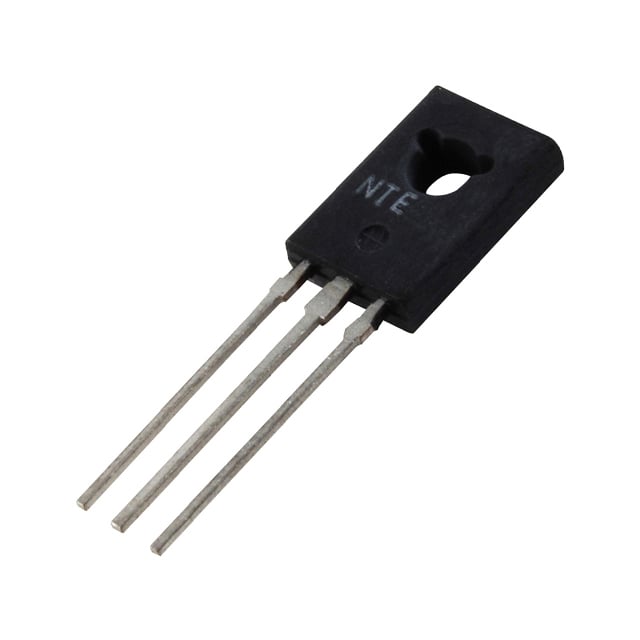

NTE5414

Manufacturer :

NTE Electronics, Inc.

Product Category :

Thyristors - SCRs

DC Gate Trigger Current-Max :

0.2 mA

Current - Hold (Ih) (Max) :

5 mA

Repetitive Peak Off-state Voltage :

200 V

Voltage - On State (Vtm) (Max) :

2.2 V

REACH SVHC :

No SVHC

Supplier Device Package :

TO-126

HTS Code :

8541.30.00.80

Number of Terminals :

3

RMS On-state Current-Max :

4.082 A

Trigger Device Type :

SCR

RoHS :

Compliant

Min Operating Temperature :

-40 °C

DC Gate Trigger Voltage-Max :

1 V

Mounting Type :

Through Hole

Operating Temperature :

-40°C ~ 110°C (TJ)

Subcategory :

Silicon Controlled Rectifiers

Terminal Position :

Single

Non-Repetitive Pk On-state Cur :

25 A

Holding Current-Max :

5 mA

Current - Non Rep. Surge 50, 60Hz (Itsm) :

25A, 35A

Product Status :

Active

SCR Type :

Sensitive Gate

Package / Case :

TO-225AA, TO-126-3

JESD-30 Code :

R-PSFM-T3

Height :

11.4046 mm

Max Operating Temperature :

110 °C

Surface Mount :

No

ECCN Code :

EAR99

Schedule B :

8541100080, 8541100080/8541100080/8541100080/8541100080/8541100080

Current - Off State (Max) :

10 µA

Voltage - Off State :

200 V

Package Shape :

RECTANGULAR

Mount :

Through Hole

Hold Current :

10 mA

Package :

Bag

Length :

8.3566 mm

Number of Elements :

1

Max Repetitive Reverse Voltage (Vrrm) :

200 V

Manufacturer :

NTE Electronics

Configuration :

Single

Width :

3.302 mm

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Qualification Status :

Not Qualified

Series :

-

Additional Feature :

Sensitive Gate

Reach Compliance Code :

Unknown

Current - Gate Trigger (Igt) (Max) :

200 µA

Current - On State (It (AV)) (Max) :

2.6 A

Terminal Form :

THROUGH-HOLE

Repetitive Peak Reverse Voltage :

200 V

Voltage - Gate Trigger (Vgt) (Max) :

1 V

JEDEC-95 Code :

TO-126

Number of Pins :

3
