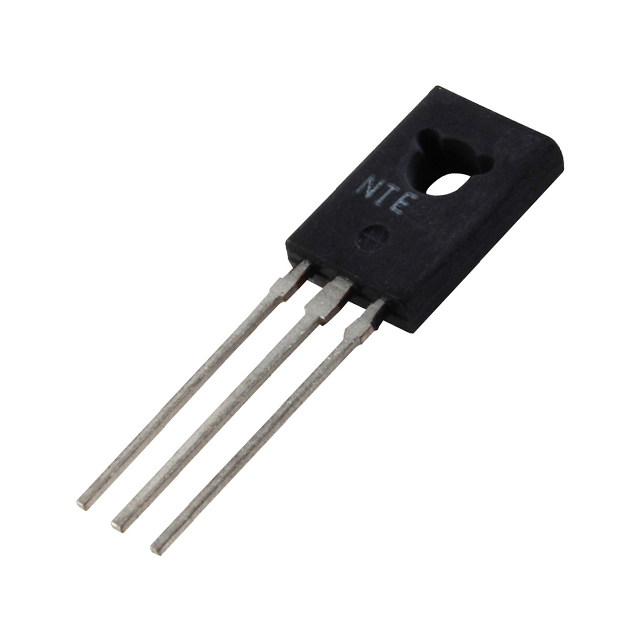

NTE5413

Manufacturer :

NTE Electronics, Inc.

Product Category :

Thyristors - SCRs

SCR Type :

Sensitive Gate

Current - Off State (Max) :

10 µA

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Repetitive Peak Reverse Voltage :

100 V

Number of Elements :

1

RMS On-state Current-Max :

4.082 A

Voltage - Off State :

100 V

Holding Current-Max :

5 mA

Series :

-

Configuration :

Single

JEDEC-95 Code :

TO-126

Current - Non Rep. Surge 50, 60Hz (Itsm) :

25A, 35A

Package :

Bag

HTS Code :

8541.30.00.80

Reach Compliance Code :

Unknown

Package Shape :

RECTANGULAR

Voltage - On State (Vtm) (Max) :

2.2 V

Manufacturer :

NTE Electronics

Surface Mount :

No

Non-Repetitive Pk On-state Cur :

25 A

ECCN Code :

EAR99

Package / Case :

TO-225AA, TO-126-3

Subcategory :

Silicon Controlled Rectifiers

Number of Terminals :

3

Trigger Device Type :

SCR

Product Status :

Active

Qualification Status :

Not Qualified

JESD-30 Code :

R-PSFM-T3

Supplier Device Package :

TO-126

Terminal Position :

Single

Additional Feature :

Sensitive Gate

Current - Hold (Ih) (Max) :

5 mA

Current - Gate Trigger (Igt) (Max) :

200 µA

Repetitive Peak Off-state Voltage :

100 V

Terminal Form :

THROUGH-HOLE

DC Gate Trigger Current-Max :

0.2 mA

DC Gate Trigger Voltage-Max :

1 V

Current - On State (It (AV)) (Max) :

2.6 A

Mounting Type :

Through Hole

Voltage - Gate Trigger (Vgt) (Max) :

1 V

Operating Temperature :

-40°C ~ 110°C (TJ)
