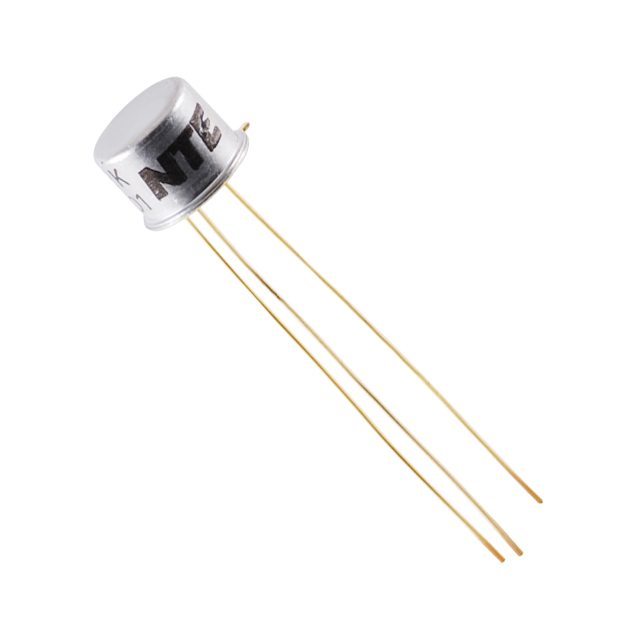

NTE5409

Manufacturer :

NTE Electronics, Inc.

Product Category :

Thyristors - SCRs

Trigger Device Type :

SCR

Series :

-

Operating Temperature :

-40°C ~ 100°C

Repetitive Peak Reverse Voltage :

400 V

JEDEC-95 Code :

TO-5

HTS Code :

8541.30.00.80

DC Gate Trigger Current-Max :

0.2 mA

Configuration :

Single

Mounting Type :

Through Hole

DC Gate Trigger Voltage-Max :

1.5 V

Current - Non Rep. Surge 50, 60Hz (Itsm) :

40A @ 60Hz

Voltage - Gate Trigger (Vgt) (Max) :

800 mV

Qualification Status :

Not Qualified

Terminal Position :

BOTTOM

Additional Feature :

Sensitive Gate

Number of Terminals :

3

Product Status :

Active

Current - Gate Trigger (Igt) (Max) :

200 µA

Supplier Device Package :

TO-5

Manufacturer :

NTE Electronics

Voltage - Off State :

400 V

Current - On State (It (RMS)) (Max) :

4 A

Reach Compliance Code :

Unknown

Package / Case :

TO-205AA, TO-5-3 Metal Can

Terminal Form :

Wire

Current - Hold (Ih) (Max) :

5 mA

Repetitive Peak Off-state Voltage :

400 V

JESD-30 Code :

O-MBCY-W3

RMS On-state Current-Max :

4 A

Package :

Bag

Holding Current-Max :

20 mA

SCR Type :

Sensitive Gate

Number of Elements :

1

Current - Off State (Max) :

750 µA

Package Shape :

Round

Surface Mount :

No

Voltage - On State (Vtm) (Max) :

2.2 V

Non-Repetitive Pk On-state Cur :

30 A

Subcategory :

Silicon Controlled Rectifiers
