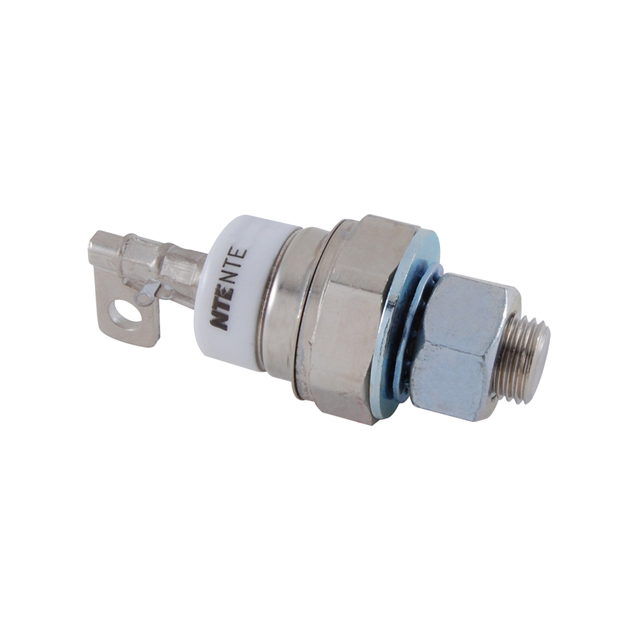

NTE5369

Manufacturer :

NTE Electronics, Inc.

Product Category :

Thyristors - SCRs

SCR Type :

Standard Recovery

HTS Code :

8541.30.00.80

Current - Gate Trigger (Igt) (Max) :

200 mA

Supplier Device Package :

TO-83

Package Shape :

Round

Subcategory :

Silicon Controlled Rectifiers

Current - Off State (Max) :

20 mA

Series :

-

Terminal Form :

UNSPECIFIED

Terminal Position :

UPPER

Operating Temperature :

-40°C ~ 125°C (TJ)

Voltage - On State (Vtm) (Max) :

2.6 V

Product Status :

Active

Manufacturer :

NTE Electronics

Voltage - Gate Trigger (Vgt) (Max) :

3 V

Number of Terminals :

2

Qualification Status :

Not Qualified

Trigger Device Type :

SCR

Current - Non Rep. Surge 50, 60Hz (Itsm) :

1950A @ 50Hz

Repetitive Peak Reverse Voltage :

1200 V

Configuration :

Single

RoHS :

Compliant

Critical Rate of Rise of Off-State Voltage-Min :

200 V/us

Reach Compliance Code :

Unknown

Additional Feature :

High Speed

Package / Case :

TO-208AD, TO-83-3, Stud

Mounting Type :

Stud Mount

Voltage - Off State :

1.2 kV

RMS On-state Current-Max :

175 A

Current - On State (It (AV)) (Max) :

128 A

JEDEC-95 Code :

TO-83

Circuit Commutated Turn-off Time-Nom :

10 μs

JESD-30 Code :

O-MUPM-X2

Surface Mount :

No

DC Gate Trigger Voltage-Max :

3 V

Non-Repetitive Pk On-state Cur :

1400 A

Case Connection :

ANODE

Number of Elements :

1

Current - Hold (Ih) (Max) :

600 mA

DC Gate Trigger Current-Max :

200 mA

Repetitive Peak Off-state Voltage :

1200 V

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Current - On State (It (RMS)) (Max) :

260 A

Package :

Bag
