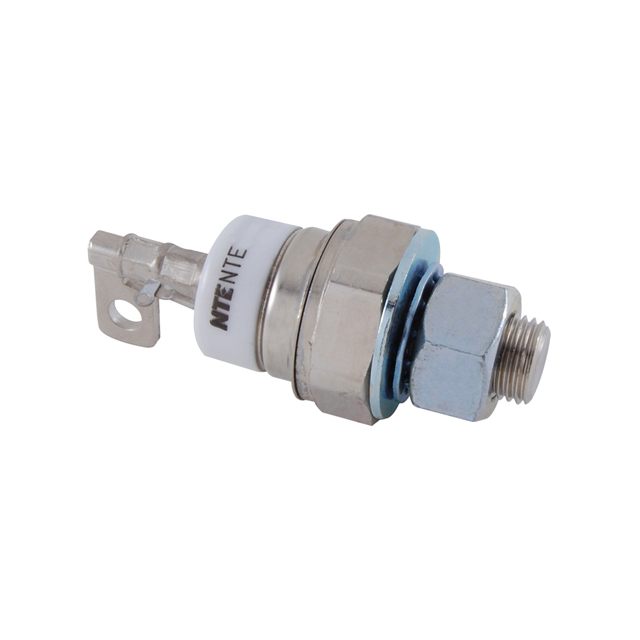

NTE5368

Manufacturer :

NTE Electronics, Inc.

Product Category :

Thyristors - SCRs

HTS Code :

8541.30.00.80

Case Connection :

ANODE

Reach Compliance Code :

Unknown

Voltage - Off State :

600 V

SCR Type :

Standard Recovery

DC Gate Trigger Current-Max :

200 mA

Current - Off State (Max) :

30 mA

Manufacturer :

NTE Electronics

Package / Case :

TO-208AD, TO-83-3, Stud

Non-Repetitive Pk On-state Cur :

1400 A

RMS On-state Current-Max :

175 A

Voltage - On State (Vtm) (Max) :

2.15 V

Repetitive Peak Reverse Voltage :

600 V

Number of Terminals :

2

Qualification Status :

Not Qualified

Package :

Bag

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Voltage - Gate Trigger (Vgt) (Max) :

3 V

JEDEC-95 Code :

TO-83

Current - Hold (Ih) (Max) :

600 mA

Repetitive Peak Off-state Voltage :

600 V

Supplier Device Package :

TO-83

Additional Feature :

High Speed

Current - On State (It (RMS)) (Max) :

135 A

Trigger Device Type :

SCR

Current - On State (It (AV)) (Max) :

85 A

Package Shape :

Round

Number of Elements :

1

Terminal Position :

UPPER

Mounting Type :

Stud Mount

Current - Non Rep. Surge 50, 60Hz (Itsm) :

2450A, 2560A

Surface Mount :

No

Product Status :

Active

Operating Temperature :

-40°C ~ 125°C

Circuit Commutated Turn-off Time-Nom :

10 μs

Critical Rate of Rise of Off-State Voltage-Min :

200 V/us

Series :

-

Terminal Form :

UNSPECIFIED

JESD-30 Code :

O-MUPM-X2

DC Gate Trigger Voltage-Max :

3 V

Configuration :

Single

Current - Gate Trigger (Igt) (Max) :

200 mA

Subcategory :

Silicon Controlled Rectifiers
