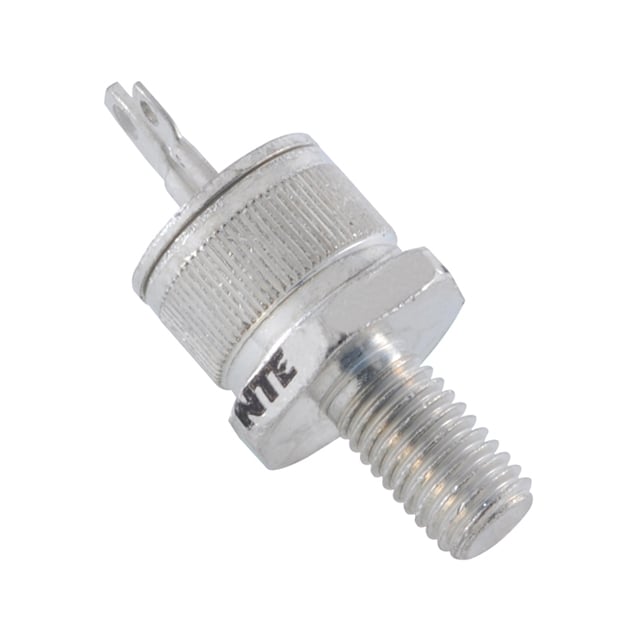

NTE5360

Manufacturer :

NTE Electronics, Inc.

Product Category :

Thyristors - SCRs

Manufacturer :

NTE Electronics

Min Operating Temperature :

-40 °C

Supplier Device Package :

TO-48

Non-Repetitive Pk On-state Cur :

180 A

Mounting Type :

Stud Mount

Surface Mount :

No

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Voltage - Gate Trigger (Vgt) (Max) :

2 V

HTS Code :

8541.30.00.80

Subcategory :

Silicon Controlled Rectifiers

Voltage - On State (Vtm) (Max) :

1.6 V

Operating Temperature :

-40°C ~ 150°C

DC Gate Trigger Current-Max :

180 mA

Holding Current-Max :

150 mA

Mount :

Stud

Package Shape :

Round

RMS On-state Current-Max :

35 A

Product Status :

Active

Terminal Form :

Solder Lug

Current - On State (It (RMS)) (Max) :

40 A

Trigger Device Type :

SCR

Number of Elements :

1

RoHS :

Compliant

Number of Terminals :

2

Additional Feature :

High Speed

Package :

Bag

DC Gate Trigger Voltage-Max :

3 V

Voltage - Off State :

600 V

Series :

-

SCR Type :

Standard Recovery

Critical Rate of Rise of Off-State Voltage-Min :

200 V/us

JEDEC-95 Code :

TO-48

Package / Case :

TO-208AA, TO-48-3, Stud

Current - Off State (Max) :

1 mA

Number of Pins :

3

Max Operating Temperature :

150 °C

Terminal Position :

UPPER

Case Connection :

ANODE

Current - Non Rep. Surge 50, 60Hz (Itsm) :

400A @ 60Hz

Current - Hold (Ih) (Max) :

50 mA

Reach Compliance Code :

Unknown

Current - Gate Trigger (Igt) (Max) :

25 mA

Repetitive Peak Off-state Voltage :

800 V

Qualification Status :

Not Qualified

Circuit Commutated Turn-off Time-Nom :

10 μs

JESD-30 Code :

O-MUPM-D2

Configuration :

Single

Max Repetitive Reverse Voltage (Vrrm) :

600 V
