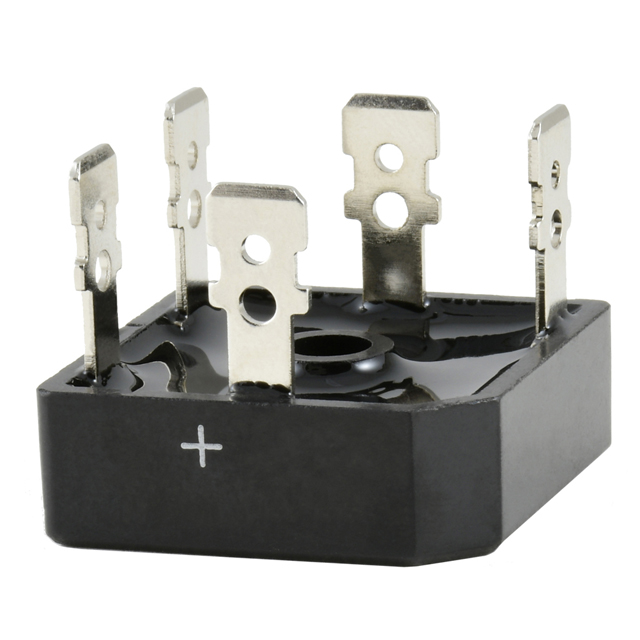

NTE53508

Manufacturer :

NTE Electronics, Inc.

Product Category :

Diodes - Bridge Rectifiers

Package :

Bag

RoHS Status :

RoHS Compliant

PCB changed :

5

Package Height :

10(Max)

Package Length :

28.6

Phase Type :

Three Phase

Military :

No

RMS Voltage (Max) :

560(V)

Product Status :

Active

Peak Non-Repetitive Surge Current (Max) :

500(A)

Bridge Type :

Three Phase

Operating Temp Range :

-40C to 150C

Package Width :

28.6

ECCN (US) :

EAR99

Supplier Device Package :

-

Diode Type :

Three Phase

Package / Case :

4-Square

Number of Elements :

1

Avg. Forward Curr (Max) :

35@TA=60C(A)

Peak Reverse Current (uA) :

10

Current - Average Rectified (Io) :

35 A

Technology :

Standard

Rad Hardened :

No

Operating Temperature :

-40°C ~ 150°C (TJ)

Peak Reverse Repetitive Voltage (V) :

800

Mounting Type :

QC Terminal

Forward Voltage :

1.19(V)

Peak Forward Voltage (V) :

1.19@40A

Series :

-

Peak Rep Rev Volt :

800(V)

Peak Non-Repetitive Forward Surge Current (A) :

500

Pin Count :

5

Voltage - Peak Reverse (Max) :

800 V

Voltage - Forward (Vf) (Max) @ If :

1.19 V @ 40 A

Operating Temperature Classification :

Automotive

Mounting :

Screw

Configuration :

Single

Peak Average Forward Current (A) :

35@Ta=60C

Current - Reverse Leakage @ Vr :

10 µA @ 800 V

Minimum Operating Temperature (°C) :

-40

Rev Curr :

10(mA)

Peak RMS Reverse Voltage (V) :

560

Maximum Operating Temperature (°C) :

150
