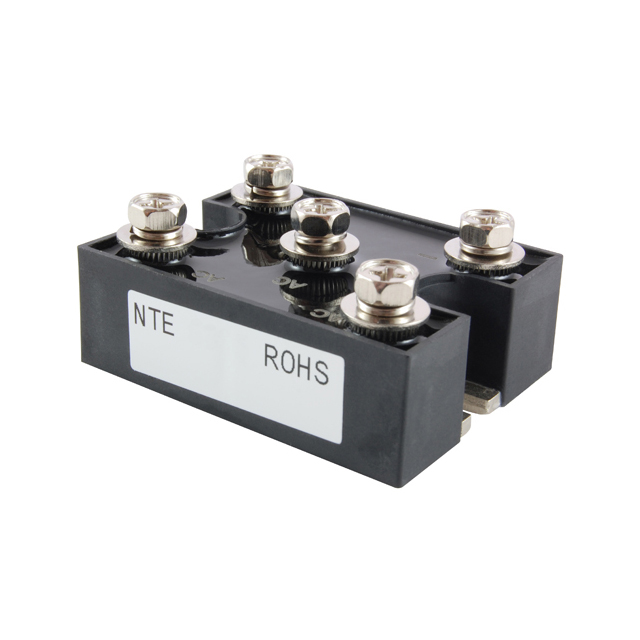

NTE5338

Manufacturer :

NTE Electronics, Inc.

Product Category :

Diodes - Bridge Rectifiers

Terminal Position :

UPPER

Reach Compliance Code :

Unknown

Voltage - Forward (Vf) (Max) @ If :

1.2 V @ 100 A

Surface Mount :

No

Package :

Bag

Non-rep Pk Forward Current-Max :

1500 A

Qualification Status :

Not Qualified

Number of Phases :

3

Number of Terminals :

5

Technology :

Standard

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

HTS Code :

8541.10.00.80

Diode Type :

Three Phase

Mounting Type :

Chassis Mount

Manufacturer :

NTE Electronics

Current - Average Rectified (Io) :

100 A

JESD-30 Code :

R-XUFM-X5

Diode Element Material :

SILICON

Product Status :

Active

Operating Temperature :

-40°C ~ 125°C (TJ)

Number of Elements :

6

Output Current-Max :

100 A

Package / Case :

4-Rectangular

Series :

-

Package Shape :

RECTANGULAR

Configuration :

BRIDGE, 6 ELEMENTS

Terminal Form :

UNSPECIFIED

Case Connection :

Isolated

Rep Pk Reverse Voltage-Max :

600 V

Voltage - Peak Reverse (Max) :

600 V

Supplier Device Package :

-

Subcategory :

Bridge Rectifier Diodes
