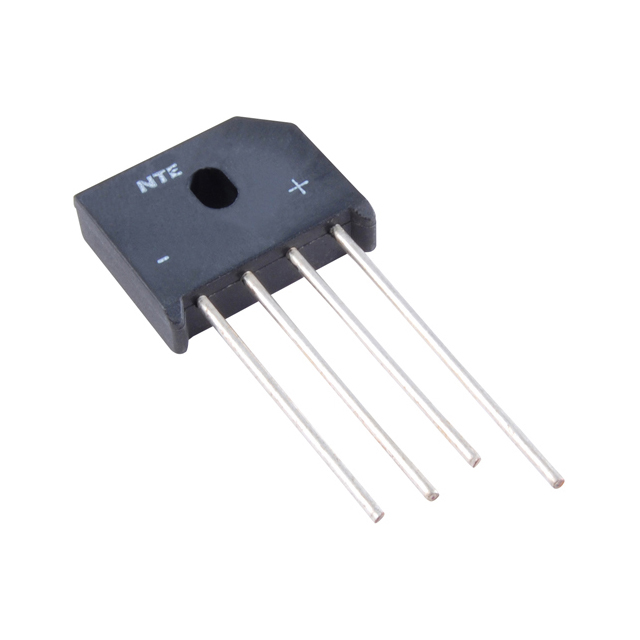

NTE5329

Manufacturer :

NTE Electronics, Inc.

Product Category :

Diodes - Bridge Rectifiers

Configuration :

Single

RMS Voltage (Max) :

140(V)

Reach Compliance Code :

Unknown

Supplier Device Package :

4-SIP

Maximum Operating Temperature (°C) :

150

Case Connection :

Isolated

Peak RMS Reverse Voltage (V) :

140

Rep Pk Reverse Voltage-Max :

200 V

PCB changed :

4

Number of Elements :

1

Voltage - Peak Reverse (Max) :

200 V

Rev Curr :

5(mA)

Bridge Type :

Single Phase

Package Shape :

RECTANGULAR

Series :

-

ECCN Code :

EAR99

Forward Voltage :

1(V)

Rad Hardened :

No

Terminal Form :

Wire

Manufacturer :

NTE Electronics

Current - Reverse Leakage @ Vr :

5 µA @ 200 V

Qualification Status :

Not Qualified

Diode Type :

Single Phase

HTS Code :

8541.10.00.80

Minimum Operating Temperature (°C) :

-50

Non-rep Pk Forward Current-Max :

250 A

Package Height :

19.4(Max)

Peak Forward Voltage (V) :

1

Package Width :

7.12

JESD-30 Code :

R-PSFM-W4

Diode Element Material :

SILICON

Mounting Type :

Through Hole

Number of Phases :

1

Peak Rep Rev Volt :

200(V)

Pin Count :

4

RoHS Status :

RoHS Compliant

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

AEC Qualified :

No

Terminal Position :

Single

Voltage - Forward (Vf) (Max) @ If :

1 V @ 6 A

Operating Temp Range :

-50C to 150C

Output Current-Max :

6 A

ECCN (US) :

EAR99

Number of Terminals :

4

Technology :

Standard

Peak Reverse Current (uA) :

5

Current - Average Rectified (Io) :

6 A

Surface Mount :

No

Subcategory :

Bridge Rectifier Diodes

Operating Temperature Classification :

Automotive

Mounting :

Through Hole

Peak Non-Repetitive Forward Surge Current (A) :

175

HTS :

8541.10.00.80

Package / Case :

4-ESIP

Peak Reverse Repetitive Voltage (V) :

200

Peak Non-Repetitive Surge Current (Max) :

175(A)

Peak Average Forward Current (A) :

6

Military :

No

Phase Type :

Single Phase

Package Length :

23.5(Max)

Product Status :

Active

Operating Temperature :

-50°C ~ 150°C (TJ)

Package :

Bag

Avg. Forward Curr (Max) :

6(A)
