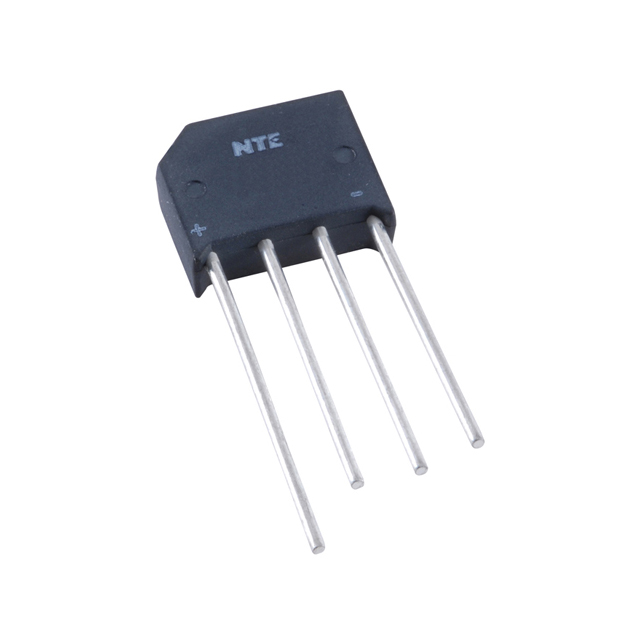

NTE5319

Manufacturer :

NTE Electronics, Inc.

Product Category :

Diodes - Bridge Rectifiers

Rev Curr :

10(mA)

HTS :

8541.10.00.80

Manufacturer :

NTE Electronics

Avg. Forward Curr (Max) :

4(A)

Current - Average Rectified (Io) :

4 A

Supplier Device Package :

4-SIP

Phase Type :

Single Phase

Package :

Bag

Pin Count :

4

Peak RMS Reverse Voltage (V) :

420

PCB changed :

4

Peak Rep Rev Volt :

600(V)

Peak Non-Repetitive Surge Current (Max) :

200(A)

Configuration :

Single

Minimum Operating Temperature (°C) :

-55

Series :

-

Diode Type :

Single Phase

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Peak Forward Voltage (V) :

1@3A

Output Current-Max :

4 A

Rep Pk Reverse Voltage-Max :

600 V

Package Height :

14.38(Max)

Package / Case :

4-ESIP

Diode Element Material :

SILICON

Current - Reverse Leakage @ Vr :

10 µA @ 600 V

Number of Elements :

1

Voltage - Peak Reverse (Max) :

600 V

Qualification Status :

Not Qualified

Mounting :

Through Hole

Non-rep Pk Forward Current-Max :

200 A

Terminal Form :

Wire

ECCN (US) :

EAR99

Package Width :

6.37(Max)

Peak Average Forward Current (A) :

4@Ta=50C

Package Length :

19.48(Max)

Maximum Operating Temperature (°C) :

125

RMS Voltage (Max) :

420(V)

Operating Temp Range :

-55C to 125C

Operating Temperature Classification :

Military

Forward Voltage :

1(V)

Product Status :

Active

Number of Terminals :

4

Bridge Type :

Single Phase

Reach Compliance Code :

Unknown

Peak Non-Repetitive Forward Surge Current (A) :

200

Rad Hardened :

No

Mounting Type :

Through Hole

Voltage - Forward (Vf) (Max) @ If :

1 V @ 3 A

Military :

No

Technology :

Standard

HTS Code :

8541.10.00.80

Operating Temperature :

-55°C ~ 125°C (TJ)

Surface Mount :

No

Subcategory :

Bridge Rectifier Diodes

Peak Reverse Current (uA) :

10

Package Shape :

RECTANGULAR

JESD-30 Code :

R-PSIP-W4

Terminal Position :

Single

RoHS Status :

RoHS Compliant

Number of Phases :

1

Peak Reverse Repetitive Voltage (V) :

600
