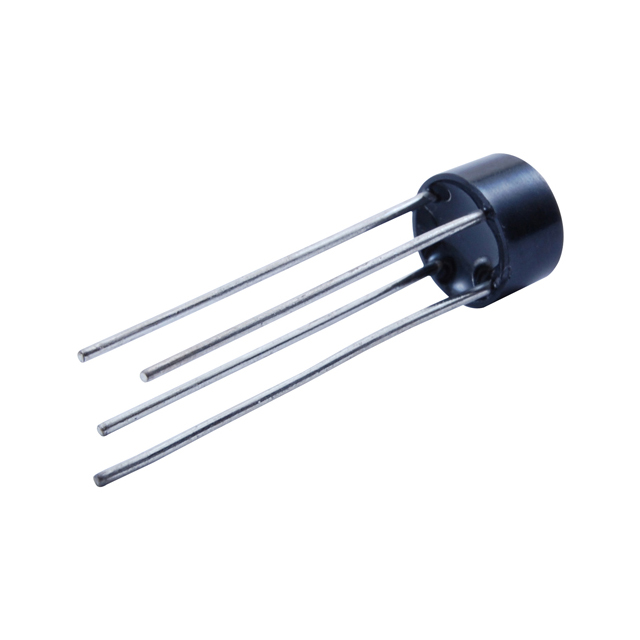

NTE5304

Share

Or copy the link below:

Mfr.Part #
NTE5304
Manufacturer
NTE Electronics, Inc.
Package / Case
4-Circular
Datasheet
Download
Description
R-SI BRG 400V 1.5A
Stock
1,108
In Stock :
1,108

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
NTE Electronics, Inc.
Product Category :
Diodes - Bridge Rectifiers
Standard Package Name :
WOM
Mounting Type :
Through Hole
Package :
Bag
Peak Rep Rev Volt :
400(V)
Military :
No
HTS Code :
8541.10.00.80
Peak Reflow Temperature (Cel) :
NOT SPECIFIED
Diode Element Material :
SILICON
Product Status :
Active
Termination :
4 Pin PC mount
RMS Voltage (Max) :
280(V)
Output Current-Max :
1.5 A
Forward Voltage :
1(V)
Maximum Operating Temperature (°C) :
125
Supplier Package :
WOM
RoHS Status :
RoHS Compliant
Current - Reverse Leakage @ Vr :
10 µA @ 400 V
Voltage - Forward (Vf) (Max) @ If :
1 V @ 1 A
Mounting :
Through Hole
Rep Pk Reverse Voltage-Max :
400 V
Configuration :
Single
JESD-30 Code :
O-PBCY-W4
Non-rep Pk Forward Current-Max :
50 A
HTS :
8541.10.00.80
Peak RMS Reverse Voltage (V) :
280
ECCN (US) :
EAR99
Package / Case :
4-Circular
Peak Non-Repetitive Surge Current (Max) :
50(A)
Rev Curr :
10(mA)
Peak Forward Voltage (V) :
1@1A
PCB changed :
4
Current - Average Rectified (Io) :
1.5 A
Number of Terminals :
4
Package Type :
WOM
RoHS :
No
Avg. Forward Curr (Max) :
1.5(A)
Phase Type :
Single Phase
Peak Reverse Repetitive Voltage (V) :
400
Rad Hardened :
No
Peak Reverse Current (uA) :
10
Operating Temperature :
-55°C ~ 125°C (TJ)
Operating Temp Range :
-55C to 125C
Series :
-
Circuit :
Full Wave Diode Bridge
Number of Phases :
1
Subcategory :
Bridge Rectifier Diodes
Peak Non-Repetitive Forward Surge Current (A) :
50
Number of Elements :
1
Qualification Status :
Not Qualified
Technology :
Standard
Terminal Form :
Wire
Peak Average Forward Current (A) :
1.5
Package Shape :
Round
Package Height :
7.11
Operating Temperature Classification :
Military
Diode Type :
Single Phase
Terminal Position :
BOTTOM
Bridge Type :
Single Phase
Diameter :
9.52
Supplier Device Package :
-
Voltage - Peak Reverse (Max) :
400 V
Reach Compliance Code :
Unknown
Manufacturer :
NTE Electronics
Pin Count :
4
Surface Mount :
No
Minimum Operating Temperature (°C) :
-55
Introducing Diodes - Bridge Rectifiers NTE Electronics, Inc. NTE5304 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Through Hole, Package / Case:4-Circular, Operating Temperature:-55°C ~ 125°C (TJ), Circuit:Full Wave Diode Bridge, NTE5304 pinout, NTE5304 datasheet PDF, NTE5304 amp .Beyond Diodes - Bridge Rectifiers NTE Electronics, Inc. NTE5304 ,we also offer MB2S-E3/80, DF08S-T, DBF310-13, Our vast inventory has you covered. Contact us now for immediate solutions.

NTE Electronics, Inc. NTE5304


Single Phase -55°C ~ 125°C (TJ) SILICON NOT SPECIFIED BOTTOM 4-Circular

NTE5304 Overview


The peak forward voltage is 1@1A in the datasheets.Using a peak RMS reverse voltage of 280, this device is capable of providing efficient operation.Keep the forward voltage above 1(V) at all times.RF diode operates at a maximum reverse voltage of 400 V in accordance wRF diodeh the device specifications.By using this device, it's possible to read a maximum output current voltage of 1.5 A.
