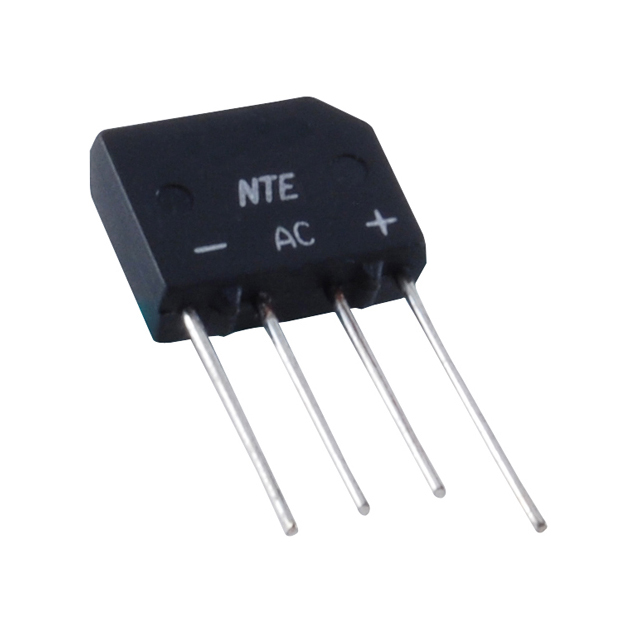

NTE166

Manufacturer :

NTE Electronics, Inc.

Product Category :

Diodes - Bridge Rectifiers

Series :

-

HTS Code :

8541.10.00.80

RoHS Status :

RoHS Compliant

Manufacturer :

NTE Electronics

Operating Temperature :

-55°C ~ 165°C (TJ)

Minimum Operating Temperature (°C) :

-55

Phase Type :

Single Phase

Package / Case :

4-SIP

Diode Element Material :

SILICON

Forward Voltage :

1.1(V)

PCB changed :

4

Peak Average Forward Current (A) :

2@Ta=50C

Mounting Type :

Through Hole

Current - Reverse Leakage @ Vr :

10 µA @ 100 V

Output Current-Max :

2 A

Number of Phases :

1

Subcategory :

Bridge Rectifier Diodes

RMS Voltage (Max) :

70(V)

Peak Reverse Current (uA) :

10

Automotive :

No

Rad Hardened :

No

Peak Rep Rev Volt :

100(V)

Operating Temp Range :

-55C to 165C

Package Shape :

RECTANGULAR

Number of Elements :

1

Military :

No

Terminal Form :

Wire

Number of Terminals :

4

Peak Non-Repetitive Forward Surge Current (A) :

60

Operating Temperature Classification :

Military

Peak Non-Repetitive Surge Current (Max) :

60(A)

Non-rep Pk Forward Current-Max :

50 A

Package Length :

14.73

Configuration :

Single

Qualification Status :

Not Qualified

Package :

Bag

Diode Type :

Single Phase

Peak RMS Reverse Voltage (V) :

70

ECCN (US) :

EAR99

Rep Pk Reverse Voltage-Max :

100 V

ECCN Code :

EAR99

Peak Reverse Repetitive Voltage (V) :

100

Rev Curr :

10(mA)

Mounting :

Through Hole

JESD-30 Code :

R-PSIP-W4

Product Status :

Active

Voltage - Forward (Vf) (Max) @ If :

1.1 V @ 2 A

Bridge Type :

Single Phase

Reach Compliance Code :

Unknown

Pin Count :

4

Current - Average Rectified (Io) :

2 A

Voltage - Peak Reverse (Max) :

100 V

Package Height :

11.18

Surface Mount :

No

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Terminal Position :

Single

Avg. Forward Curr (Max) :

2(A)

Maximum Operating Temperature (°C) :

165

Package Width :

4.83

Technology :

Standard

Supplier Device Package :

4-SIP

HTS :

8541.10.00.80

Peak Forward Voltage (V) :

1.1
