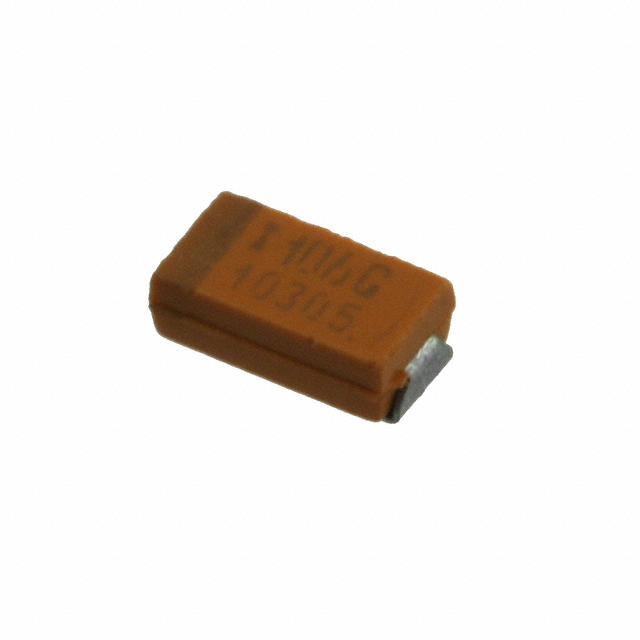

NOJS156M001RWJ

Manufacturer :

KYOCERA AVX

Product Category :

Niobium Oxide Capacitors

Mounting Type :

Surface Mount

JESD-609 Code :

e3

Rated (DC) Voltage (URdc) :

1.8V

Case Code (Metric) :

3216

Termination :

SMD/SMT

Terminal Shape :

J BEND

Pbfree Code :

yes

Length :

3.2mm

Packing Method :

TR, 7 INCH

HTS Code :

8532.29.00.40

Tolerance :

±20%

Size / Dimension :

0.126Lx0.063W 3.20mmx1.60mm

Voltage - Rated :

1.8V

Manufacturer Size Code :

S

Published :

2012

Current - Leakage :

1μA

Height :

1.2mm

Operating Temperature :

-55°C~105°C

Ripple Current :

197mA

Capacitance :

15μF

Reference Standard :

AEC-Q200

Height Seated (Max) :

0.047 1.20mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Factory Lead Time :

21 Weeks

Mount :

Surface Mount

Package / Case :

1206 (3216 Metric)

ESR (Equivalent Series Resistance) :

2Ohm

Dissipation Factor :

6%

Series :

OxiCap® NOJ

ECCN Code :

EAR99

Dielectric Material :

NIOBIUM

Packaging :

Tape and Reel (TR)

RoHS Status :

ROHS3 Compliant

Case Code (Imperial) :

1206
