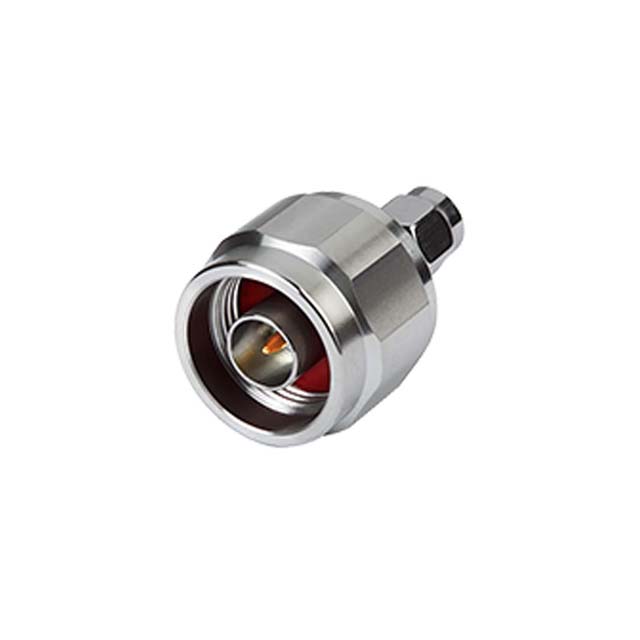

NM-SM50+

Manufacturer :

Mini-Circuits

Product Category :

Coaxial Connector (RF) Adapters

Pbfree Code :

yes

Package :

Bag

Center Gender :

Male to Male

Additional Feature :

VSWR 1.15 AT 8 GHZ

Convert From (Adapter End) :

SMA Plug, Male Pin

Panel Mount :

No

Style :

Straight

Product Type :

RF Adapters - Between Series

Adapter Series :

SMA to N

RoHS :

Details

Dielectric Material :

-

Adapter Type :

Plug to Plug

Mating Cycles :

-

Features :

-

Convert To (Adapter End) :

N Plug, Male Pin

Base Product Number :

-

Connector Type :

RF CONNECTOR ADAPTER

Frequency Range :

DC to 18 GHz

Impedance :

50Ohm

Option :

GENERAL PURPOSE

MIL Conformance :

No

Operating Temperature :

-55°C ~ 100°C

ECCN Code :

EAR99

Coupling Type :

Threaded

VSWR :

1.3

DIN Conformance :

No

Body Material :

Stainless Steel

Operating Frequency-Max :

18 GHz

Subcategory :

RF Adapters

Product Category :

RF Adapters - Between Series

Characteristic Impedance :

50 Ω

Contact Material :

NOT SPECIFIED

HTS Code :

8536.69.80.00

Series :

-

Frequency - Max :

18 GHz

Orientation :

Straight

Mounting Feature :

-

Mounting Type :

Free Hanging (In-Line)

IEC Conformance :

No

Insertion Loss :

-

Includes :

-

Reach Compliance Code :

Unknown

Manufacturer :

Mini-Circuits

Product Status :

Active

Conversion Type :

Between Series

Adapter Style :

N-SMA

Center Contact Material :

-

Brand :

Mini-Circuits

Body Finish :

-

Fastening Type :

Threaded, Threaded

Ingress Protection :

-

Filter Feature :

No

Contact Gender :

MALE-MALE

Center Contact Plating :

-
