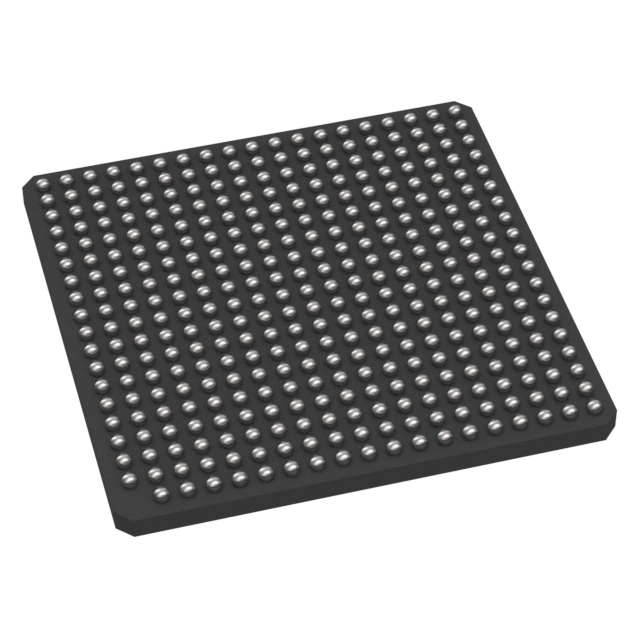

MC7410TVU400LE

Manufacturer :

NXP Semiconductors

Product Category :

Microprocessors

Format :

Floating Point

Number of Cores/Bus Width :

1 Core 32-Bit

Published :

1994

Boundary Scan :

yes

Time@Peak Reflow Temperature-Max (s) :

40

Operating Temperature :

-40°C~105°C TA

Number of Terminations :

360

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Terminal Position :

BOTTOM

HTS Code :

8542.31.00.01

Height Seated (Max) :

2.8mm

Integrated Cache :

yes

Clock Frequency :

133MHz

Supply Voltage-Max (Vsup) :

1.9V

Core Processor :

PowerPC G4

Supply Voltage-Min (Vsup) :

1.7V

Graphics Acceleration :

No

Series :

MPC74xx

Bit Size :

32

Address Bus Width :

32

Low Power Mode :

yes

Peak Reflow Temperature (Cel) :

260

Terminal Form :

Ball

JESD-609 Code :

e2

Terminal Pitch :

1.27mm

Supply Voltage :

1.8V

Factory Lead Time :

8 Weeks

External Data Bus Width :

64

Packaging :

Tray

ECCN Code :

3A991.a.1

Surface Mount :

yes

Length :

25mm

Voltage - I/O :

1.8V 2.5V 3.3V

RoHS Status :

ROHS3 Compliant

uPs/uCs/Peripheral ICs Type :

MICROPROCESSOR, RISC

Base Part Number :

MC7410

Package / Case :

360-BCBGA, FCCBGA

Terminal Finish :

TIN COPPER/TIN SILVER

JESD-30 Code :

S-CBGA-B360

Speed :

400MHz
