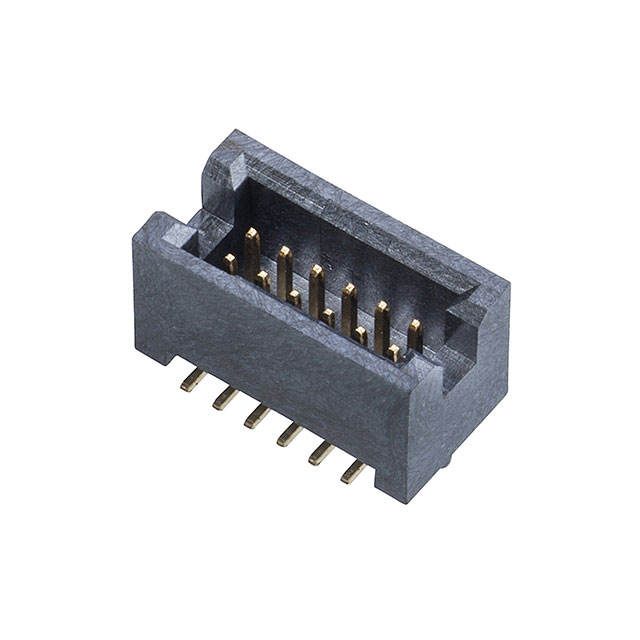

M50-4910645

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Insulation Resistance :

1000000000Ohm

Mating Contact Pitch :

0.05 inch

HTS Code :

8536.69.40.40

Pitch - Mating :

0.050 1.27mm

Number of Positions :

12

Insulation Material :

Liquid Crystal Polymer (LCP)

Total Number of Contacts :

12

Series :

Archer M50

Mounting Type :

Surface Mount

Board Mounting Option :

PEG

Contact Type :

Male Pin

Insulation Color :

Black

Packaging :

Tube

Fastening Type :

Push-Pull

RoHS Status :

ROHS3 Compliant

Operating Temperature :

-40°C~105°C

Style :

Board to Board

Reliability :

COMMERCIAL

Material Flammability Rating :

UL94 V-0

Contact Material :

Phosphor Bronze

Number of Positions Loaded :

All

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number Of PCB Rows :

2

Durability :

100 Cycles

PCB Contact Pattern :

RECTANGULAR

Number of Rows :

2

Contact Finish - Mating :

Gold

Number of Conductors :

ONE

ECCN Code :

EAR99

Termination :

Solder

Feature :

Board Guide

Insulation Height :

0.224 5.69mm

Factory Lead Time :

13 Weeks

Row Spacing - Mating :

0.050 (1.27mm)

Reference Standard :

UL

Stack Height (Mating) :

6.5mm

Shrouding :

Shrouded - 4 Wall

Contact Shape :

Square

Contact Finish Thickness - Mating :

Flash

Mounting Option 1 :

LOCKING

Current Rating (Amps) :

1A

Published :

2016

Connector Type :

Header
