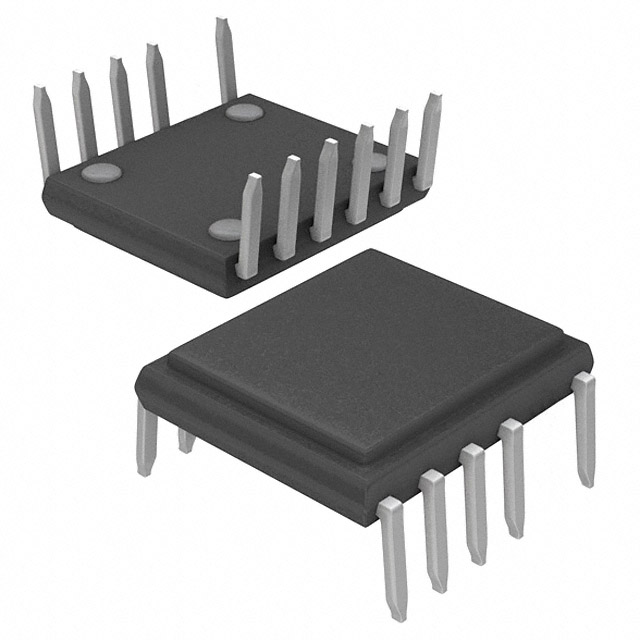

LNK6664V

Manufacturer :

Power Integrations

Product Category :

AC DC Converters, Offline Switches

Height Seated (Max) :

2.34mm

Package / Case :

12-SDIP (0.412, 10.46mm) Exposed Pad

Terminal Position :

Dual

Length :

10.46mm

Control Mode :

CURRENT-MODE

Analog IC - Other Type :

ANALOG CIRCUIT

HTS Code :

8542.39.00.01

Operating Temperature :

-40°C~150°C TJ

Fault Protection :

Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit

Power Rating :

20W

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Duty Cycle :

64%

Width :

10.16mm

Voltage - Breakdown :

650V

Series :

LinkSwitch™-HP

RoHS Status :

RoHS Compliant

Mounting Type :

Through Hole

Number of Functions :

1

Radiation Hardening :

No

Output Current :

15µA

Operating Supply Current :

1.3mA

Frequency - Switching :

120kHz~136kHz

Surface Mount :

No

Terminal Pitch :

1.78mm

Output Power :

16W

Internal Switch(s) :

yes

Factory Lead Time :

4 Weeks

Number of Terminations :

11

Packaging :

Tube

Output Isolation :

Isolated

Number of Pins :

11

Published :

2014

Topology :

Flyback

Max Power Dissipation :

28W
