LNK603PG

Share

Or copy the link below:

Mfr.Part #
LNK603PG
Manufacturer
Power Integrations
Package / Case
8-DIP (0.300, 7.62mm), 7 Leads
Datasheet
Download
Description

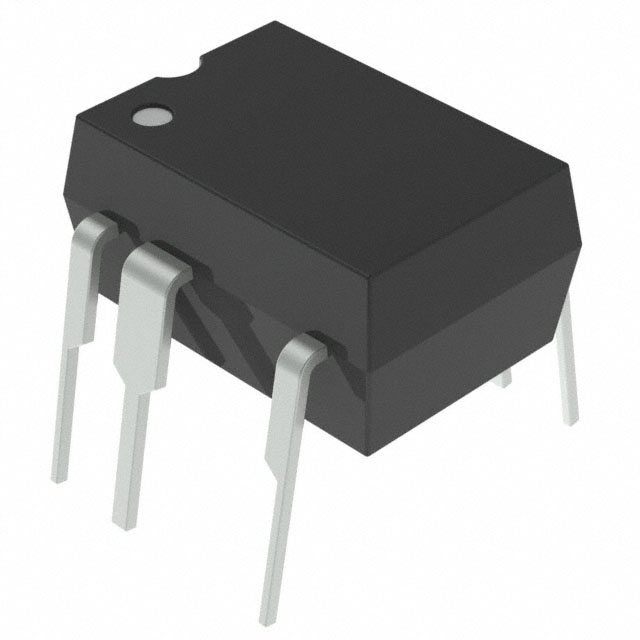

IC OFFLINE SWITCH FLYBACK 8DIP
Stock
8,504
In Stock :
8,504

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Power Integrations
Product Category :
AC DC Converters, Offline Switches
Number of Terminations :
8
Terminal Finish :
MATTE TIN
Power Dissipation :
2.5W
Max Power Dissipation :
3.3W
Min Input Voltage :
85V
Series :
LinkSwitch®-II
REACH SVHC :
No SVHC
Current :
320mA
Factory Lead Time :
4 Weeks
Number of Outputs :
1
JESD-609 Code :
e3
Fault Protection :
Current Limiting, Open Loop, Over Temperature, Short Circuit
Operating Temperature :
-40°C~150°C TJ
Frequency - Switching :
Up to 85kHz
Output Current :
214mA
Terminal Pitch :
2.54mm
RoHS Status :
RoHS Compliant
Analog IC - Other Type :
ANALOG CIRCUIT
Internal Switch(s) :
yes
Package / Case :
8-DIP (0.300, 7.62mm), 7 Leads
Number of Pins :
8
Packaging :
Tube
Height :
3.68mm
Operating Supply Current :
440μA
Output Power :
3.3W
Voltage :
700V
Power Rating :
3.3W
Topology :
Flyback
Length :
9.83mm
Frequency :
66kHz
Mounting Type :
Through Hole
Published :
2002
Width :
6.6mm
Mount :
Through Hole
Output Isolation :
Isolated
Terminal Position :
Dual
Max Duty Cycle :
55 %
Min Supply Voltage (AC) :
85V
Min Input Voltage (AC) :
85V
Radiation Hardening :
No
Output Voltage :
6V
Max Supply Voltage (AC) :
265V
Pin Count :
8
Max Input Voltage :
265V
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Number of Functions :
1
Max Input Voltage (AC) :
265V
Datasheets
LNK603PG
Introducing AC DC Converters, Offline Switches Power Integrations LNK603PG from Chip IC,where excellence meets affordability. This product stands out with its Number of Terminations:8, Operating Temperature:-40°C~150°C TJ, Package / Case:8-DIP (0.300, 7.62mm), 7 Leads, Number of Pins:8, Voltage:700V, Mounting Type:Through Hole, LNK603PG pinout, LNK603PG datasheet PDF, LNK603PG amp .Beyond AC DC Converters, Offline Switches Power Integrations LNK603PG ,we also offer LNK623DG-TL, LNK3206D-TL, TNY285KG-TL, Our vast inventory has you covered. Contact us now for immediate solutions.

Power Integrations LNK603PG


AC DC Converters Power Integrations LNK603PG Overview

Discover the epitome of efficiency and reliability with the AC DC Converters by Power Integrations, featuring the innovative LNK603PG. This integrated circuit offline switch, housed in an 8DIP package, redefines power management in a compact form factor. Designed for seamless integration into various applications, it ensures optimal performance and durability, making it the preferred choice for discerning B2B customers.

LNK603PG Features

  • Offline Switch Flyback Configuration
  • Compact 8DIP Package
  • High Efficiency
  • Reliable Performance
  • Customizable for Specific Applications

LNK603PG Applications

  • LED Lighting: Implement efficient power management in LED lighting systems for enhanced brightness control and energy savings.
  • Home Appliances: Ensure reliable operation of household appliances such as refrigerators and air conditioners with seamless power conversion.
  • Industrial Equipment: Enable robust power supply solutions for industrial machinery and automation systems, ensuring uninterrupted operation in demanding environments.
