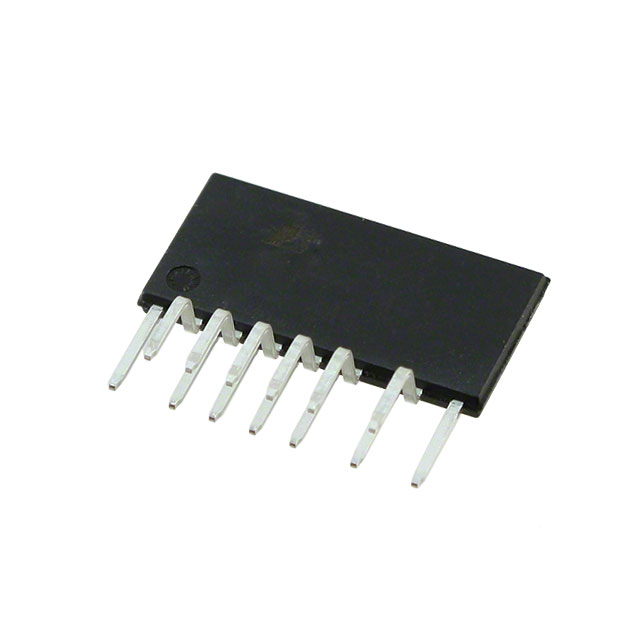

LCS708HG
Or copy the link below:
- Mfr.Part #
- LCS708HG
- Manufacturer
- Power Integrations
- Package / Case
- 16-SSIP, 13 Leads, Exposed Pad, Formed Leads
- Datasheet
- Download
- Description
- IC LLC CTRL MFET 440W ESIP16C
- Stock
- 2,625
- In Stock ：
- 2,625
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Power Integrations
- Product Category :
- Full Half-Bridge Drivers
- Factory Lead Time :
- 4 Weeks
- Supply Voltage :
- 12V
- Series :
- HiperLCS™
- Package / Case :
- 16-SSIP, 13 Leads, Exposed Pad, Formed Leads
- Fault Protection :
- Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO
- Operating Temperature :
- -40°C~150°C TJ
- ECCN Code :
- EAR99
- Output Current :
- 24.9A
- Interface :
- On/Off
- Packaging :
- Tube
- Terminal Pitch :
- 0.97mm
- REACH SVHC :
- No SVHC
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- JESD-30 Code :
- R-PZIP-T13
- Number of Terminations :
- 13
- Number of Pins :
- 16
- Terminal Finish :
- MATTE TIN
- Nominal Supply Current :
- 8.8mA
- Published :
- 2012
- HTS Code :
- 8542.39.00.01
- Voltage - Supply :
- 11.4V~15V
- JESD-609 Code :
- e3
- Output Configuration :
- Half Bridge
- Mount :
- Through Hole
- High Side Driver :
- yes
- Rds On (Typ) :
- 260m Ω
- Terminal Position :
- Zig-Zag
- Width :
- 2.01mm
- Load Type :
- Inductive
- Voltage - Load :
- 11.4V~15V
- Number of Functions :
- 1
- Max Output Current :
- 30.9A
- Feature :
- Auto Restart, Slew Rate Controlled
- Applications :
- GENERAL PURPOSE
- Radiation Hardening :
- No
- RoHS Status :
- RoHS Compliant
- Mounting Type :
- Through Hole
- Datasheets
- LCS708HG
Full Half-Bridge Drivers Power Integrations LCS708HG Overview
Introducing the LCS708HG by Power Integrations, a state-of-the-art IC designed specifically for LLC (resonant converter) applications. This innovative product features a multi-function controller integrated with MOSFET drivers, engineered to deliver up to 440 watts of power in a compact ESIP16C package. The LCS708HG is tailor-made for high-performance applications that require efficient power conversion and reliable operation under variable load conditions. Utilizing advanced technology, this IC enhances system reliability and optimizes power efficiency, making it an ideal choice for manufacturers looking to improve their power management solutions.
LCS708HG Features
The LCS708HG Full Half-Bridge Driver from Power Integrations offers a range of features designed to enhance performance and simplify system design. Key features include integrated high-voltage MOSFET drivers, an internal startup bias regulator, and advanced protection mechanisms such as over-temperature and over-current protection. Additionally, its enhanced thermal management capabilities ensure stable performance even under rigorous operating conditions. With its precise control and robust design, the LCS708HG provides a reliable foundation for building high-efficiency power systems.
LCS708HG Applications
- Telecommunications Equipment: The LCS708HG can be used to power telecom infrastructures, ensuring stable operation and energy efficiency in power supplies for servers and networking devices.
- Consumer Electronics: Suitable for high-power consumer electronics, such as gaming consoles and home theater systems, where efficient power conversion is crucial for enhanced user experience.
- Industrial Systems: This IC excels in demanding industrial environments, offering the robustness needed for equipment such as automated machinery and control systems.
- LED Lighting: Its efficient control capabilities make it an excellent choice for LED drivers, particularly in high-power LED lighting solutions that require reliable, constant current supply.
