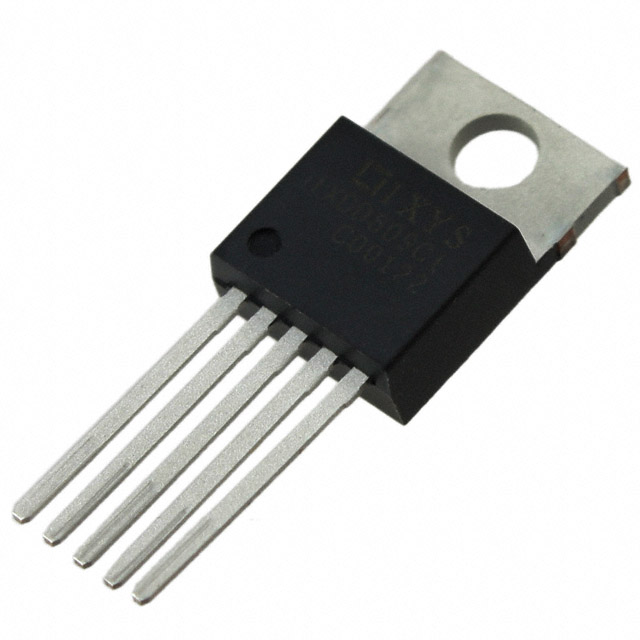

IXDD609CI

Manufacturer :

Littelfuse

Product Category :

Gate Drivers

Qualification Status :

Not Qualified

Product :

MOSFET Gate Drivers

Gate Type :

IGBT, N-Channel, P-Channel MOSFET

Mounting Type :

Through Hole

Maximum Operating Temperature :

+ 125 C

RoHS Status :

ROHS3 Compliant

Terminal Position :

Single

Configuration :

Non-Inverting

Min Supply Voltage :

4.5V

Terminal Form :

THROUGH-HOLE

Current - Peak Output (Source, Sink) :

9A 9A

Published :

2014

Product Type :

Gate Drivers

Number of Drivers :

1

Product Category :

Gate Drivers

Mounting Style :

Through Hole

Input Type :

Non-Inverting

Voltage - Supply :

4.5V~35V

Interface IC Type :

BUFFER OR INVERTER BASED MOSFET DRIVER

Output Current :

2A

Manufacturer :

IXYS

HTS Code :

8542.39.00.01

Factory Lead Time :

11 Weeks

JESD-30 Code :

R-XSFM-T5

Max Operating Temperature :

125°C

Series :

--

Mount :

Through Hole

Rise / Fall Time (Typ) :

22ns 15ns

Operating Supply Current :

10μA

Temperature Grade :

Automotive

Logic Voltage - VIL, VIH :

0.8V 3V

High Side Driver :

No

Max Supply Voltage :

35V

Supplier Device Package :

TO-220-5

Min Operating Temperature :

-40°C

Channel Type :

Single

Number of Functions :

1

Type :

Low-Side

Surface Mount :

No

Base Product Number :

IXDD609

Package / Case :

TO-220-5

Package :

Tube

Brand :

IXYS Integrated Circuits

Driven Configuration :

Low-Side

Operating Temperature :

-55°C~150°C TJ

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

ECCN Code :

EAR99

Number of Outputs :

1

Rise Time :

22ns

Tradename :

Clare

Weight :

3.000003g

Fall Time (Typ) :

15 ns

Product Status :

Active

Number of Terminals :

5

Package Shape :

RECTANGULAR

Minimum Operating Temperature :

- 40 C

Subcategory :

PMIC - Power Management ICs

Pin Count :

3

Reach Compliance Code :

Unknown

Number of Channels :

1

Packaging :

Tube

RoHS :

Details

Qualification :

AEC-Q100

Number of Pins :

5

Technology :

Si
