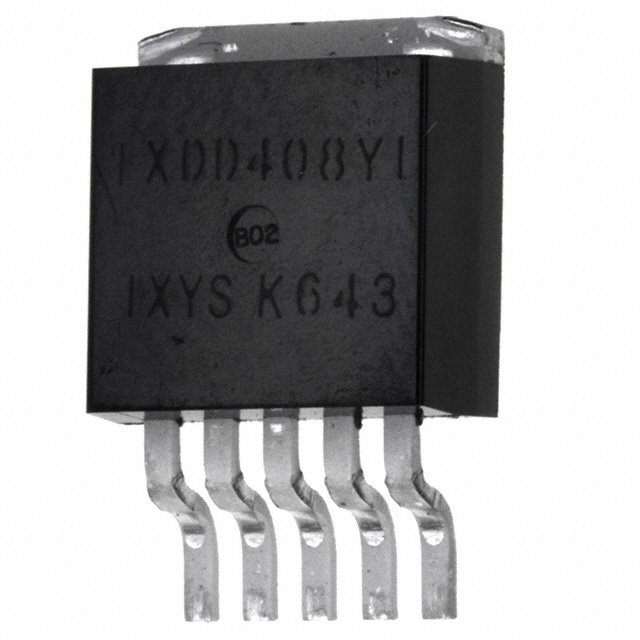

IXDD408YI

Manufacturer :

Littelfuse

Product Category :

Gate Drivers

Number of Terminations :

5

Gate Type :

IGBT, N-Channel, P-Channel MOSFET

Base Product Number :

IXDD408

Base Part Number :

IXD*408

Nominal Supply Current :

3mA

Pin Count :

4

Package Shape :

RECTANGULAR

RoHS Status :

RoHS Compliant

Input Type :

Non-Inverting

Current - Peak Output (Source, Sink) :

8A 8A

Supply Voltage :

18V

Number of Pins :

5

Mount :

Surface Mount

Product Status :

Obsolete

Max Power Dissipation :

17W

Channel Type :

Single

Number of Functions :

1

ECCN Code :

EAR99

Seated Height-Max :

4.8 mm

High Side Driver :

yes

Temperature Grade :

Industrial

Rise Time :

18ns

Manufacturer :

IXYS Corporation

Number of Drivers :

1

Turn On Time :

0.042 μs

Operating Temperature :

-40°C~150°C TJ

JESD-30 Code :

R-PSSO-G5

Surface Mount :

yes

Length :

9.975 mm

Series :

--

Operating Supply Voltage :

25V

HTS Code :

8542.39.00.01

Weight :

1.59999g

Mounting Type :

Surface Mount

Number of Terminals :

5

Terminal Position :

Single

Terminal Finish :

Tin/Lead (Sn/Pb)

Peak Reflow Temperature (Cel) :

260

Time@Peak Reflow Temperature-Max (s) :

35

Height Seated (Max) :

4.8mm

Terminal Form :

Gull wing

Rise / Fall Time (Typ) :

14ns 15ns

Driven Configuration :

Low-Side

Voltage - Supply :

4.5V~25V

Interface IC Type :

BUFFER OR INVERTER BASED MOSFET DRIVER

JESD-609 Code :

e0

Qualification Status :

Not Qualified

Published :

2001

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Output Peak Current Limit-Nom :

8A

Package :

Tube

Output Current :

8A

Logic Voltage - VIL, VIH :

0.8V 3.5V

Turn Off Time :

0.038 µs

Reach Compliance Code :

Unknown

Power Supplies :

18 V

Width :

9.15 mm

Terminal Pitch :

1.7 mm

Packaging :

Tube

Lead Free :

Lead Free

Fall Time (Typ) :

19 ns
