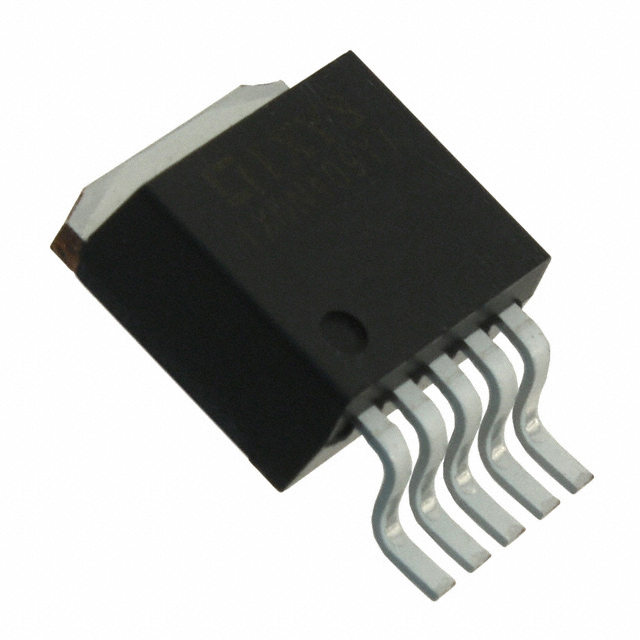

IXDD409YI

Manufacturer :

Littelfuse

Product Category :

Gate Drivers

Mounting Type :

Surface Mount

Channel Type :

Single

Terminal Form :

Gull wing

Width :

9.15 mm

Package :

Tube

Base Part Number :

IXD*409

Length :

9.975mm

JESD-30 Code :

R-PSSO-G5

Number of Functions :

1

Operating Temperature :

-55°C~150°C TJ

Fall Time (Typ) :

15 ns

Lead Free :

Lead Free

Series :

--

Package Shape :

RECTANGULAR

Product Status :

Obsolete

RoHS Status :

RoHS Compliant

Height Seated (Max) :

4.8mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Nominal Supply Current :

3mA

Output Current :

9A

Terminal Position :

Single

Terminal Pitch :

1.7 mm

Driven Configuration :

Low-Side

Input Type :

Non-Inverting

Surface Mount :

yes

Qualification Status :

Not Qualified

Peak Reflow Temperature (Cel) :

Not Applicable

Weight :

1.59999g

Turn On Time :

0.04 µs

Time@Peak Reflow Temperature-Max (s) :

Not Applicable

Output Peak Current Limit-Nom :

9A

JESD-609 Code :

e3

Number of Terminations :

5

High Side Driver :

No

Gate Type :

IGBT, N-Channel, P-Channel MOSFET

ECCN Code :

EAR99

Pin Count :

4

Turn Off Time :

0.036 μs

HTS Code :

8542.39.00.01

Published :

2004

Rise / Fall Time (Typ) :

10ns 10ns

Current - Peak Output (Source, Sink) :

9A 9A

Terminal Finish :

Tin (Sn)

Rise Time :

15ns

Base Product Number :

IXDD409

Packaging :

Tube

Temperature Grade :

Military

Supply Voltage :

18V

Reach Compliance Code :

not_compliant

Mount :

Surface Mount

Manufacturer :

IXYS Corporation

Logic Voltage - VIL, VIH :

0.8V 3.5V

Number of Drivers :

1

Seated Height-Max :

4.8 mm

Interface IC Type :

BUFFER OR INVERTER BASED MOSFET DRIVER

Number of Terminals :

5

Voltage - Supply :

4.5V~35V

Operating Supply Voltage :

35V
