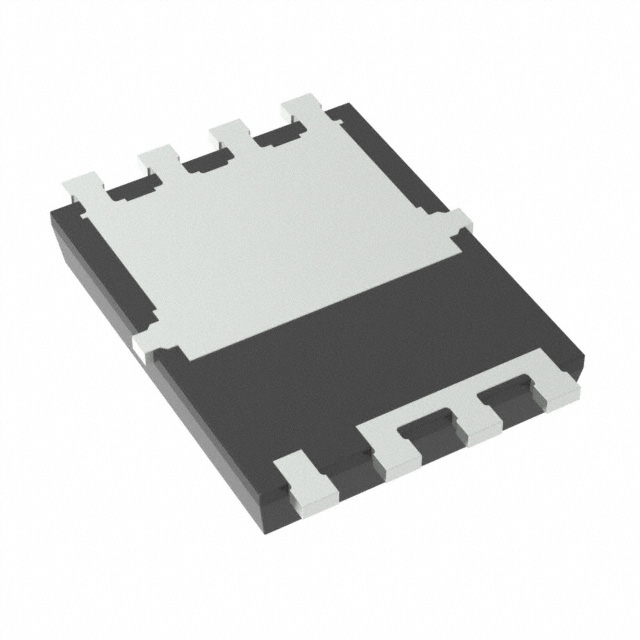

IAUC120N04S6L008ATMA1
Or copy the link below:
- Mfr.Part #
- IAUC120N04S6L008ATMA1
- Manufacturer
- Infineon Technologies
- Package / Case
- 8-PowerTDFN
- Datasheet
- Download
- Description
- MOSFET N-CH 40V 120A 8TDSON-33
- Stock
- 9,875
- In Stock ：
- 9,875
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Infineon Technologies
- Product Category :
- Transistors - FETs, MOSFETs - Single
- Factory Lead Time :
- 16 Weeks
- RoHS Status :
- ROHS3 Compliant
- Drive Voltage (Max Rds On,Min Rds On) :
- 4.5V 10V
- Input Capacitance (Ciss) (Max) @ Vds :
- 7910pF @ 25V
- Drain to Source Voltage (Vdss) :
- 40V
- Current - Continuous Drain (Id) @ 25°C :
- 120A Tc
- Mounting Type :
- Surface Mount
- Operating Temperature :
- -55°C~175°C TJ
- Series :
- Automotive, AEC-Q101, OptiMOS™
- FET Type :
- N-Channel
- Vgs(th) (Max) @ Id :
- 2V @ 90µA
- Gate Charge (Qg) (Max) @ Vgs :
- 140nC @ 10V
- Power Dissipation-Max :
- 150W Tc
- Vgs (Max) :
- ±16V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Rds On (Max) @ Id, Vgs :
- 0.8m Ω @ 60A, 10V
- Packaging :
- Tape and Reel (TR)
- Package / Case :
- 8-PowerTDFN
- Datasheets
- IAUC120N04S6L008ATMA1
N-Channel Tape & Reel (TR) 0.8m Ω @ 60A, 10V ±16V 7910pF @ 25V 140nC @ 10V 40V 8-PowerTDFN
IAUC120N04S6L008ATMA1 Overview
The input capacitance parameter, CI, is defined as the capacitance between the input terminals of an op amp with either input grounded, and this device's maximal input capacitance is 7910pF @ 25V.Operating this transistor requires a 40V drain to source voltage (Vdss).By using drive voltage (4.5V 10V), this device helps reduce its overall power consumption.
IAUC120N04S6L008ATMA1 Features
a 40V drain to source voltage (Vdss)
IAUC120N04S6L008ATMA1 Applications
There are a lot of Infineon Technologies
IAUC120N04S6L008ATMA1 applications of single MOSFETs transistors.
- LCD/LED TV
- Consumer Appliances
- Lighting
- Uninterruptible Power Supply
- AC-DC Power Supply
- Synchronous Rectification for ATX 1 Server I Telecom PSU
- Motor drives and Uninterruptible Power Supplies
- Micro Solar Inverter
- DC/DC converters
- Power Tools
