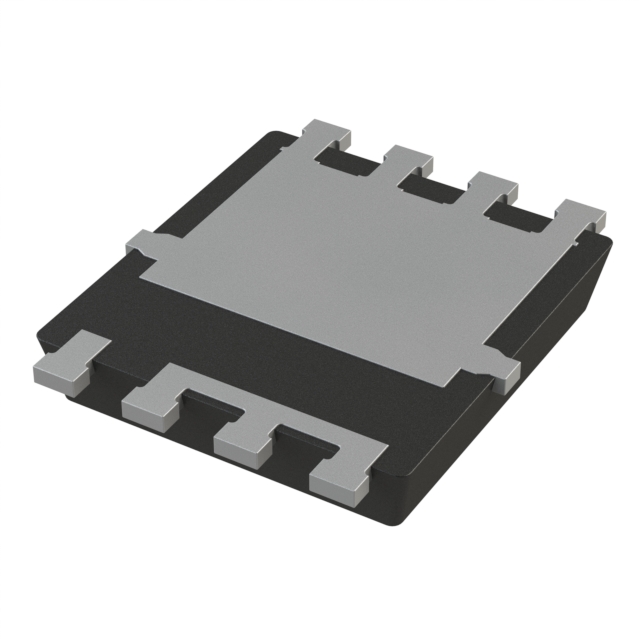

IAUC120N04S6L005ATMA1

Manufacturer :

Infineon Technologies

Product Category :

Transistors - FETs, MOSFETs - Single

Mounting Style :

SMD/SMT

Pin Count :

8

Transistor Type :

1 N-Channel

Rds On (Max) @ Id, Vgs :

0.55mOhm @ 60A, 10V

Mounting Type :

Surface Mount

Package / Case :

8-PowerTDFN

Drive Voltage (Max Rds On, Min Rds On) :

4.5V, 10V

Configuration :

Single

Current - Continuous Drain (Id) @ 25°C :

120A (Tj)

Product Type :

MOSFET

FET Type :

N-Channel

Manufacturer :

Infineon

Number of Channels :

1 Channel

Gate Charge (Qg) (Max) @ Vgs :

177 nC @ 10 V

Vgs(th) (Max) @ Id :

2V @ 130µA

Base Product Number :

IAUC120

Input Capacitance (Ciss) (Max) @ Vds :

11203 pF @ 25 V

Brand :

Infineon Technologies

Maximum Operating Temperature :

+ 175 C

Transistor Polarity :

N-Channel

Subcategory :

MOSFETs

Rise Time :

8 ns

Minimum Operating Temperature :

- 55 C

Series :

Automotive, AEC-Q101, OptiMOS?

Operating Temperature :

-55°C ~ 175°C (TJ)

Power Dissipation (Max) :

187W (Tc)

Channel Mode :

Enhancement

Continuous Drain Current Id :

435

MSL :

MSL 1 - Unlimited

Vgs (Max) :

±16V

Package Type :

SuperSO8 5 x 6

Packaging :

MouseReel

Supplier Device Package :

PG-TDSON-8-53

Package :

Digi-Reel?

FET Feature :

-

Product Category :

MOSFET

Channel Type :

N

Tradename :

OptiMOS

Number of Elements per Chip :

1

Product Status :

Active

Power Dissipation :

187

Drain to Source Voltage (Vdss) :

40 V

Qualification :

AEC-Q101
