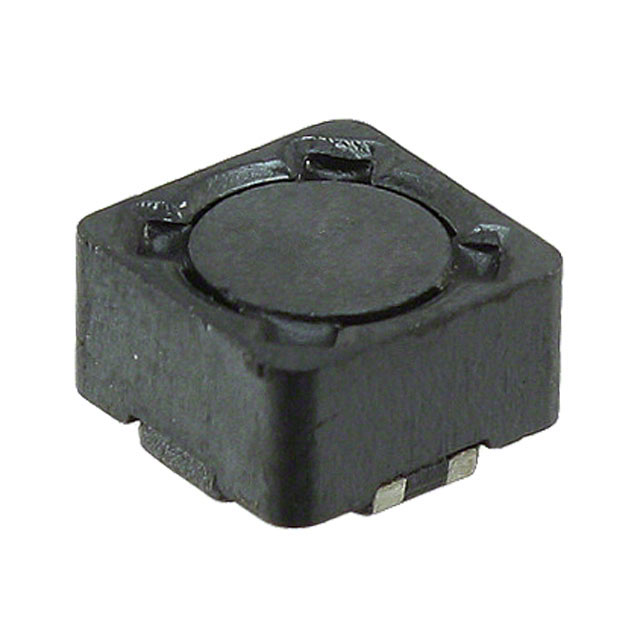

HM78D-755151MLFTR
Or copy the link below:
- Mfr.Part #
- HM78D-755151MLFTR
- Manufacturer
- TT Electronics
- Package / Case
- Nonstandard
- Datasheet
- Download
- Description
- INDUCT ARRAY 2 COIL 150UH SMD
- Stock
- 918
- In Stock ：
- 918
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TT Electronics
- Product Category :
- Arrays, Signal Transformers
- Shielding :
- Shielded
- Inductance - Parallel :
- 150 µH
- Mounting Type :
- Surface Mount
- Tolerance :
- ±20%
- RoHS Status :
- RoHS Compliant
- Min Operating Temperature :
- -40°C
- Inductance :
- 150 µH
- Size / Dimension :
- 0.303Lx0.303W 7.70mmx7.70mm
- Current Rating - Series :
- 346mA
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Width :
- 7.6962mm
- RMS Current (Irms) :
- 690mA
- Inductance - Series :
- 600 μH
- Current :
- 346mA
- Max Operating Temperature :
- 85°C
- Termination :
- SMD/SMT
- DC Resistance (DCR) - Series :
- 2.37Ohm
- Number of Coils :
- 2
- Inductance - Connected In Parallel :
- 150μH
- Package / Case :
- Nonstandard
- Height :
- 0.189 4.80mm
- Max DC Current :
- 810mA
- Packaging :
- Tape and Reel (TR)
- Mount :
- Surface Mount
- Current Saturation - Parallel :
- 810mA
- DC Resistance (DCR) - Parallel :
- 591mOhm
- Inductance Tolerance :
- 20%
- Inductance - Connected In Series :
- 600μH
- Length :
- 7.6962mm
- REACH SVHC :
- No SVHC
- Operating Temperature :
- -40°C~125°C
- Current Saturation - Series :
- 410mA
- Series :
- HM78D
- Current Rating - Parallel :
- 690mA
- Datasheets
- HM78D-755151MLFTR
HM78D-755151MLFTR datasheet pdf and Arrays, Signal Transformers product details from TT Electronics/BI Magnetics stock available at
