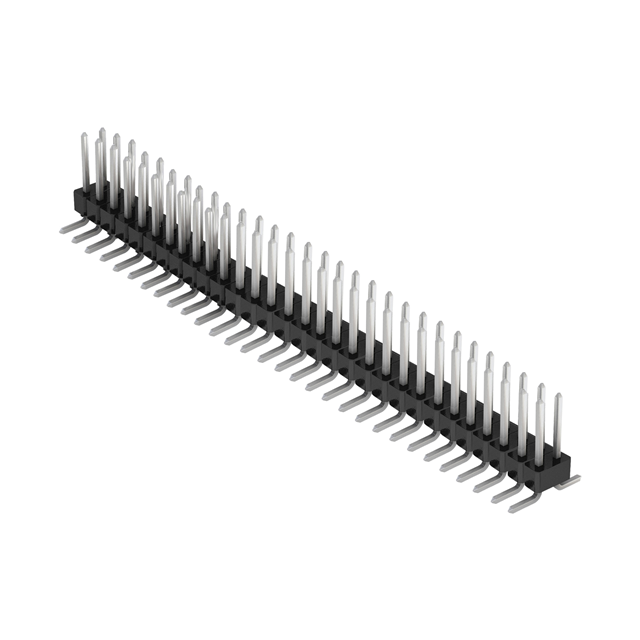

GBC30DABN-M30
Or copy the link below:
- Mfr.Part #
- GBC30DABN-M30
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 60POS 2.54MM
- Stock
- 16,564
- In Stock ：
- 16,564
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Headers, Male Pins
- Number of Positions Loaded :
- All
- Connector Type :
- Header, Breakaway
- Termination :
- Solder
- Number of Conductors :
- ONE
- Plating Thickness :
- 10μin
- Fastening Type :
- Push-Pull
- Insulation Material :
- Polyamide (PA9T), Nylon 9T
- Housing Color :
- Black
- JESD-609 Code :
- e3
- Current Rating (Amps) :
- 3A
- Gender :
- Male
- Housing Material :
- Plastic
- Mount :
- Surface Mount
- Height :
- 2.54mm
- Reliability :
- COMMERCIAL
- Pitch - Mating :
- 0.100 2.54mm
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Number of Positions :
- 60
- Material Flammability Rating :
- UL94 V-0
- Total Number of Contacts :
- 60
- Length :
- 76.2mm
- Contact Shape :
- Square
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Contact Type :
- Male Pin
- Width :
- 5.08mm
- Contact Material :
- Phosphor Bronze
- RoHS Status :
- ROHS3 Compliant
- Reference Standard :
- UL
- Contact Finish - Post :
- Tin
- Style :
- Board to Board or Cable
- Insulation Height :
- 0.100 2.54mm
- Mating Contact Pitch :
- 0.1 inch
- Lead Free :
- Lead Free
- Mounting Type :
- Surface Mount
- Published :
- 2005
- Contact Length - Mating :
- 0.230 5.84mm
- Contact Finish Thickness - Mating :
- 10.0μin 0.25μm
- Packaging :
- Bulk
- Operating Temperature :
- -65°C~150°C
- Contact Finish - Mating :
- Gold
- Number of Rows :
- 2
- Shrouding :
- Unshrouded
- Datasheets
- GBC30DABN-M30
2-Row Header, Breakaway Solder Phosphor Bronze Bulk Surface Mount Gold Polyamide (PA9T), Nylon 9T 60-Position Board to Board or Cable 0.100 2.54mm Height
GBC30DABN-M30 Overview
It comes in Header, Breakaway packaging.The device's mounting type is Surface Mount.In order to package the product, a Bulk case is used.The part is mounted by Surface Mount.The device runs in -65°C~150°C Operating Temperature.
GBC30DABN-M30 Features
GBC30DABN-M30 Applications
There are a lot of Sullins Connector Solutions
GBC30DABN-M30 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
