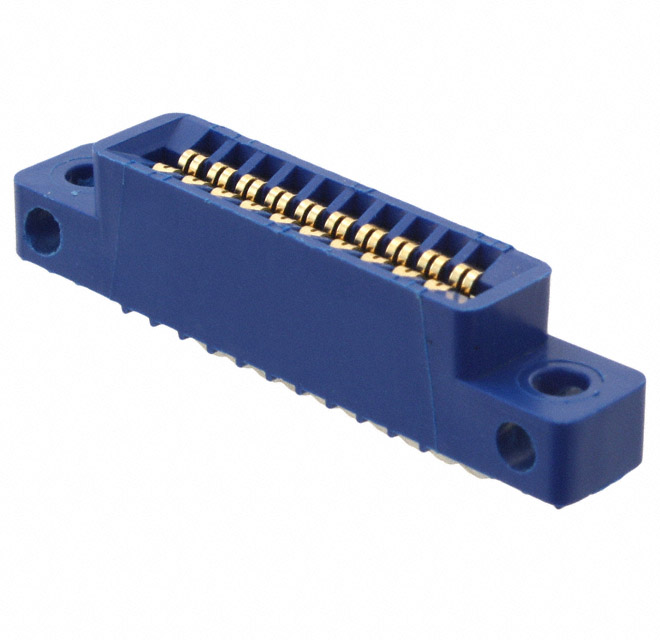

ESC10DRAS
Or copy the link below:
- Mfr.Part #
- ESC10DRAS
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FMALE 20POS 0.100
- Stock
- 22,604
- In Stock ：
- 22,604
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Edgeboard Connectors
- Body Depth :
- 0.631 inch
- Flange Feature :
- Side Mount Opening, Unthreaded, 0.125 (3.18mm) Dia
- Number of Conductors :
- ONE
- Body/Shell Style :
- Receptacle
- Reliability :
- COMMERCIAL
- Pitch :
- 0.100 2.54mm
- Total Number of Contacts :
- 20
- Contact Finish Thickness :
- 10.0μin 0.25μm
- Termination :
- Solder
- JESD-609 Code :
- e4
- Connector Type :
- Full Bellows
- Dielectric Withstanding Voltage :
- 600VDC V
- Additional Feature :
- SIDE MOUNTING
- Reference Standard :
- UL, CSA
- Rated Current (Signal) :
- 3A
- Card Type :
- Non Specified - Dual Edge
- ECCN Code :
- EAR99
- Number of Positions/Bay/Row :
- 10
- Published :
- 2015
- Body Length or Diameter :
- 1.875 inch
- Read Out :
- Dual
- Material - Insulation :
- Polybutylene Terephthalate (PBT)
- PCB Contact Pattern :
- RECTANGULAR
- Gender :
- FEMALE
- Operating Temperature :
- -65°C~125°C
- HTS Code :
- 8536.69.40.40
- Lead Free :
- Lead Free
- Mounting Type :
- Through Hole, Right Angle
- Contact Finish :
- Gold
- Card Thickness :
- 0.062 1.57mm
- Pbfree Code :
- yes
- Insulation Resistance :
- 5000000000Ohm
- Factory Lead Time :
- 3 Weeks
- Mount :
- Through Hole
- Body Breadth :
- 0.33 inch
- Color :
- Blue
- Contact Material :
- Phosphor Bronze
- RoHS Status :
- ROHS3 Compliant
- Number Of PCB Rows :
- 2
- Packaging :
- Tube
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Contact Type :
- Full Bellows
- Number of Rows :
- 2
- Number of Positions :
- 20
- Datasheets
- ESC10DRAS
