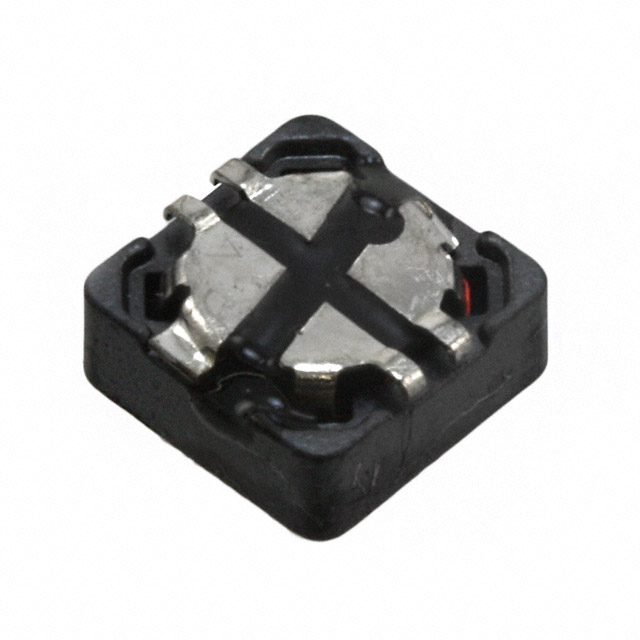

DRQ73-220-R
Or copy the link below:
- Mfr.Part #
- DRQ73-220-R
- Manufacturer
- Eaton-Electronics Division
- Package / Case
- Nonstandard
- Datasheet
- Download
- Description
- INDUCT ARRAY 2 COIL 22.65UH SMD
- Stock
- 4,027
- In Stock ：
- 4,027
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Eaton-Electronics Division
- Product Category :
- Arrays, Signal Transformers
- Package / Case :
- Nonstandard
- Depth :
- 7.6mm
- RMS Current (Irms) :
- 1.62A
- Current Rating :
- 1.62A
- Factory Lead Time :
- 14 Weeks
- DC Resistance (DCR) - Parallel :
- 107mOhm
- Weight :
- 1.360777g
- Resistance :
- 107mOhm
- Current Rating - Series :
- 811mA
- Shielding :
- Shielded
- Termination :
- SMD/SMT
- Current Saturation - Parallel :
- 1.67A
- Max DC Current :
- 1.67A
- Tolerance :
- ±20%
- Inductance - Connected In Parallel :
- 22.65μH
- Length :
- 7.6mm
- Current Rating - Parallel :
- 1.62A
- DC Resistance (DCR) - Series :
- 429mOhm
- Inductance - Connected In Series :
- 90.6μH
- Inductance Tolerance :
- 20%
- Width :
- 7.5946mm
- Mounting Type :
- Surface Mount
- Number of Coils :
- 2
- Core Material :
- Ferrite
- Mount :
- Surface Mount
- RoHS Status :
- ROHS3 Compliant
- Current Saturation - Series :
- 830mA
- Published :
- 2011
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Tape and Reel (TR)
- Series :
- DRQ
- Inductance :
- 22 µH
- Inductance - Parallel :
- 22.65 μH
- Operating Temperature :
- -40°C~125°C
- Max Operating Temperature :
- 125°C
- Height :
- 0.140 3.55mm
- Inductance - Series :
- 90.6 μH
- Size / Dimension :
- 0.299Lx0.299W 7.60mmx7.60mm
- Radiation Hardening :
- No
- Current :
- 811mA
- Min Operating Temperature :
- -40°C
- Self Resonant Frequency :
- 100kHz
- Military Standard :
- Not
- Test Frequency :
- 100kHz
- Number of Pins :
- 4
- Lead Free :
- Lead Free
- REACH SVHC :
- No SVHC
- Datasheets
- DRQ73-220-R
