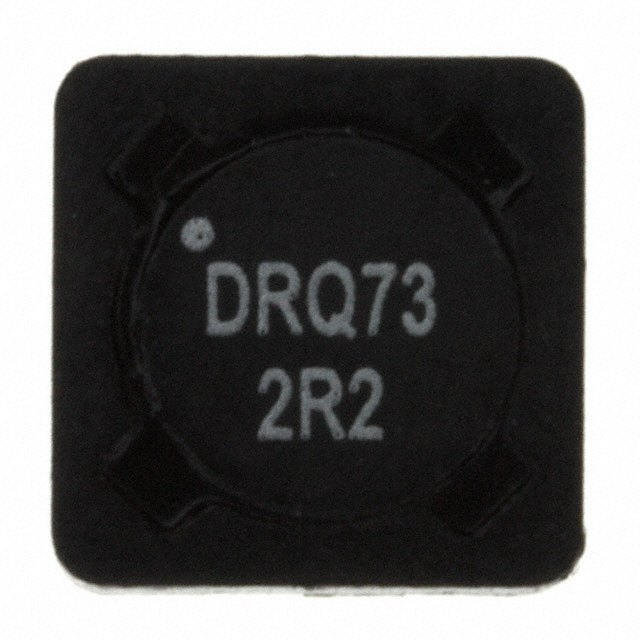

DRQ73-2R2-R

Manufacturer :

Eaton-Electronics Division

Product Category :

Arrays, Signal Transformers

DC Resistance (DCR) - Series :

66.9mOhm

Min Operating Temperature :

-40°C

Termination :

SMD/SMT

Length :

7.5946mm

Number of Coils :

2

Inductance - Connected In Parallel :

2.07μH

Mount :

Surface Mount

Shielding :

Shielded

Series :

DRQ

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Inductance - Series :

8.28 μH

Max DC Current :

5.52A

Current Rating - Parallel :

4.11A

Current Rating - Series :

2.06A

Resistance :

16.7mOhm

Depth :

7.6mm

Current Rating :

2.06A

Weight :

907.18474mg

Inductance - Connected In Series :

8.28μH

DC Resistance (DCR) - Parallel :

16.7mOhm

Inductance - Parallel :

2.07 μH

Max Operating Temperature :

125°C

Lead Free :

Lead Free

Current Saturation - Parallel :

5.52A

RoHS Status :

ROHS3 Compliant

Number of Pins :

4

Package / Case :

Nonstandard

Height :

0.140 3.55mm

Published :

2014

Current Saturation - Series :

2.76A

Operating Temperature :

-40°C~125°C

Core Material :

Ferrite

Current :

2.06A

Packaging :

Tape and Reel (TR)

Inductance :

2.2 µH

Mounting Type :

Surface Mount

Self Resonant Frequency :

100kHz

Width :

7.5946mm

Test Frequency :

100kHz

Tolerance :

±20%

Factory Lead Time :

9 Weeks

Size / Dimension :

0.299Lx0.299W 7.60mmx7.60mm

Military Standard :

Not
