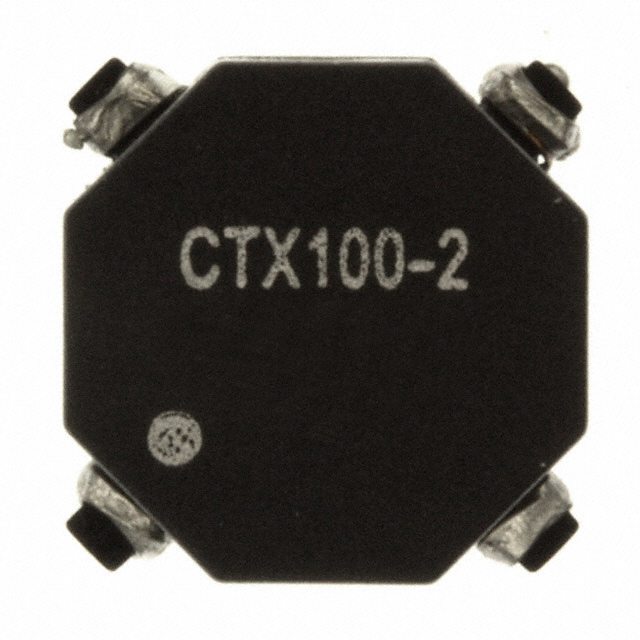

CTX100-2-R
Or copy the link below:
- Mfr.Part #
- CTX100-2-R
- Manufacturer
- Eaton-Electronics Division
- Package / Case
- Nonstandard
- Datasheet
- Download
- Description
- INDUCT ARRAY 2 COIL 99.45UH SMD
- Stock
- 3,058
- In Stock ：
- 3,058
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Eaton-Electronics Division
- Product Category :
- Arrays, Signal Transformers
- Factory Lead Time :
- 16 Weeks
- Inductance - Series :
- 397.81 μH
- Radiation Hardening :
- No
- Inductance - Parallel :
- 99.45 μH
- Mount :
- Surface Mount
- Military Standard :
- Not
- Packaging :
- Tape and Reel (TR)
- Width :
- 11.43mm
- Height :
- 0.235 5.97mm
- Shielding :
- Unshielded
- Current Rating - Parallel :
- 630mA
- Operating Temperature :
- -40°C~85°C
- RoHS Status :
- ROHS3 Compliant
- Package / Case :
- Nonstandard
- Mounting Type :
- Surface Mount
- Length :
- 11.43mm
- Current Rating :
- 630mA
- Number of Coils :
- 2
- DC Resistance (DCR) - Series :
- 1.828Ohm Max
- Resistance :
- 457mOhm
- Inductance :
- 99.45 μH
- RMS Current (Irms) :
- 630mA
- Tolerance :
- ±20%
- REACH SVHC :
- Unknown
- Min Operating Temperature :
- -40°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Inductance - Connected In Series :
- 397.81μH
- Size / Dimension :
- 0.450Lx0.450W 11.43mmx11.43mm
- Test Frequency :
- 100kHz
- Series :
- OCTA-PAC®
- Current Rating - Series :
- 320mA
- Depth :
- 11.43mm
- Termination :
- SMD/SMT
- Published :
- 2007
- Weight :
- 1.814369g
- Max Operating Temperature :
- 85°C
- Core Material :
- Metal
- Number of Pins :
- 4
- Max DC Current :
- 630mA
- DC Resistance (DCR) - Parallel :
- 457mOhm Max
- Inductance - Connected In Parallel :
- 99.45μH
- Lead Free :
- Lead Free
- Datasheets
- CTX100-2-R
