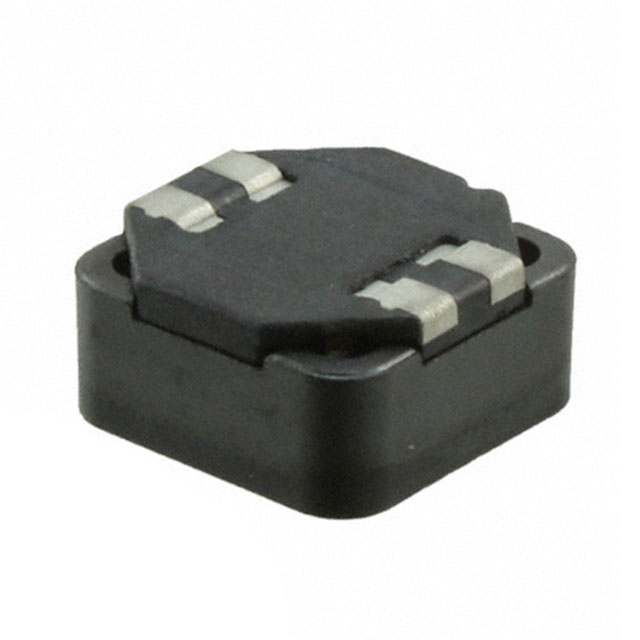

744874101
Or copy the link below:
- Mfr.Part #
- 744874101
- Manufacturer
- Würth Elektronik
- Package / Case
- Nonstandard
- Datasheet
- Download
- Description
- INDUCT ARRAY 2 COIL 100UH SMD
- Stock
- 436
- In Stock ：
- 436
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Würth Elektronik
- Product Category :
- Arrays, Signal Transformers
- Factory Lead Time :
- 16 Weeks
- RoHS Status :
- ROHS3 Compliant
- Termination :
- SMD/SMT
- Inductance - Connected In Parallel :
- 100μH
- Voltage - Rated DC :
- 80V
- Depth :
- 12.5mm
- Mount :
- Surface Mount
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Surface Mount
- Inductance - Parallel :
- 100 µH
- Tolerance :
- ±20%
- Max DC Current :
- 1.2A
- DC Resistance (DCR) - Parallel :
- 320mOhm Max
- REACH SVHC :
- Unknown
- Min Operating Temperature :
- -40°C
- Series :
- WE-DD
- Height :
- 0.256 6.50mm
- Shielding :
- Shielded
- Current Saturation - Parallel :
- 1.7A
- Max Operating Temperature :
- 125°C
- Number of Coils :
- 2
- Current Saturation - Series :
- 850mA
- Inductance :
- 100 µH
- Inductance - Series :
- 400 μH
- Current Rating - Series :
- 600mA
- Number of Pins :
- 4
- Core Material :
- Ferrite
- Packaging :
- Tape and Reel (TR)
- Current Rating - Parallel :
- 1.2A
- Self Resonant Frequency :
- 6MHz
- Operating Temperature :
- -40°C~125°C
- Package / Case :
- Nonstandard
- Width :
- 12.5mm
- Length :
- 12.5mm
- Size / Dimension :
- 0.492Lx0.492W 12.50mmx12.50mm
- Resistance :
- 320mOhm
- Inductance Tolerance :
- 20%
- Inductance - Connected In Series :
- 400μH
- RMS Current (Irms) :
- 1.2A
- Datasheets
- 744874101
