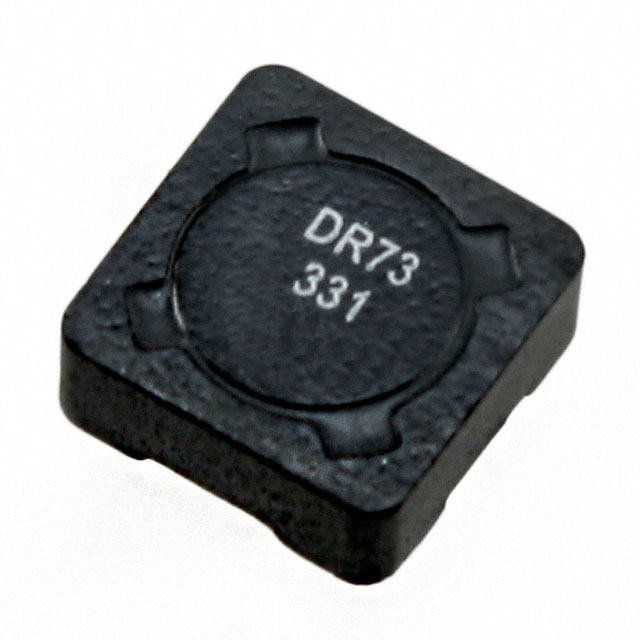

DR73-331-R

Manufacturer :

Eaton-Electronics Division

Product Category :

Fixed Inductors

Inductance Tolerance :

20%

Self Resonant Frequency :

100kHz

Max DC Current :

440mA

Depth :

7.6mm

Mounting Type :

Surface Mount

Current Rating (Amps) :

420mA

Size / Dimension :

0.299Lx0.299W 7.60mmx7.60mm

Type :

Wirewound

Current Rating :

420mA

Radiation Hardening :

No

Test Frequency :

100kHz

Operating Temperature :

-40°C~125°C

Lead Free :

Lead Free

Package / Case :

Nonstandard

REACH SVHC :

No SVHC

Min Operating Temperature :

-40°C

DC Resistance (DCR) :

1.59Ohm

RoHS Status :

ROHS3 Compliant

Termination :

SMD/SMT

Number of Pins :

2

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Current - Saturation :

440mA

Tolerance :

±20%

Series :

DR

Published :

2014

Height :

3.55mm

Factory Lead Time :

6 Weeks

Width :

6mm

RMS Current (Irms) :

420mA

DC Current :

420mA

Max Operating Temperature :

125°C

Weight :

907.18474mg

Height Seated (Max) :

0.140 3.55mm

Length :

7.6mm

Mount :

Surface Mount

Inductance :

330μH

Inductance Frequency - Test :

100kHz

Packaging :

Tape and Reel (TR)

Shielding :

Shielded

Military Standard :

Not

Material - Core :

Ferrite
