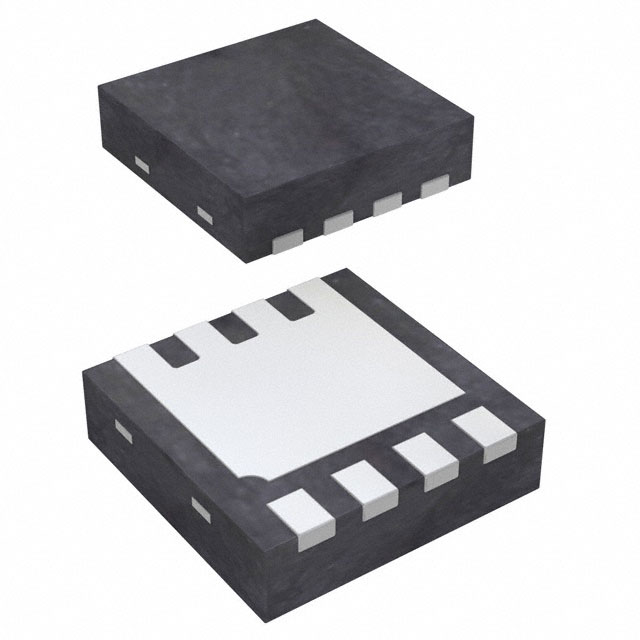

DMT3006LDK-7
Or copy the link below:
- Mfr.Part #
- DMT3006LDK-7
- Manufacturer
- Diodes Incorporated
- Package / Case
- 8-PowerWDFN
- Datasheet
- Download
- Description
- MOSFET N-CH 30V 17.1A/46.2A 8DFN
- Stock
- 2,804
- In Stock ：
- 2,804
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Diodes Incorporated
- Product Category :
- Transistors - FETs, MOSFETs - Single
- Mounting Type :
- Surface Mount
- Factory Lead Time :
- 23 Weeks
- Packaging :
- Tape and Reel (TR)
- Mount :
- Surface Mount
- Drive Voltage (Max Rds On,Min Rds On) :
- 4.5V 10V
- Vgs (Max) :
- ±20V
- ECCN Code :
- EAR99
- Gate Charge (Qg) (Max) @ Vgs :
- 22.6nC @ 10V
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- Pbfree Code :
- yes
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Input Capacitance (Ciss) (Max) @ Vds :
- 1320pF @ 15V
- Vgs(th) (Max) @ Id :
- 3V @ 250µA
- Number of Pins :
- 8
- Current - Continuous Drain (Id) @ 25°C :
- 17.1A Ta 46.2A Tc
- Rds On (Max) @ Id, Vgs :
- 6.5m Ω @ 12A, 10V
- Power Dissipation-Max :
- 1.1W Ta
- Published :
- 2016
- RoHS Status :
- ROHS3 Compliant
- Terminal Finish :
- Nickel/Palladium/Gold (Ni/Pd/Au)
- Drain to Source Voltage (Vdss) :
- 30V
- Operating Temperature :
- -55°C~150°C TJ
- JESD-609 Code :
- e4
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Package / Case :
- 8-PowerWDFN
- FET Type :
- N-Channel
- Continuous Drain Current (ID) :
- 46.2A
- Datasheets
- DMT3006LDK-7
N-Channel Tape & Reel (TR) 6.5m Ω @ 12A, 10V ±20V 1320pF @ 15V 22.6nC @ 10V 30V 8-PowerWDFN
DMT3006LDK-7 Overview
Input capacitance, CI, is defined as the capacitance between two input terminals of an op amp with one input grounded, and the input capacitance of this device is 1320pF @ 15V.This device has a continuous drain current (ID) of [46.2A], which is its maximum continuous current.In order to operate this transistor, a voltage of 30V is needed from the drain to the source (Vdss).Its overall power consumption can be reduced by using drive voltage (4.5V 10V).
DMT3006LDK-7 Features
a continuous drain current (ID) of 46.2A
a 30V drain to source voltage (Vdss)
DMT3006LDK-7 Applications
There are a lot of Diodes Incorporated
DMT3006LDK-7 applications of single MOSFETs transistors.
- Uninterruptible Power Supply
- AC-DC Power Supply
- Synchronous Rectification for ATX 1 Server I Telecom PSU
- Motor drives and Uninterruptible Power Supplies
- Micro Solar Inverter
- DC/DC converters
- Power Tools
- Motor Drives and Uninterruptible Power Supples
- Synchronous Rectification
- Battery Protection Circuit
