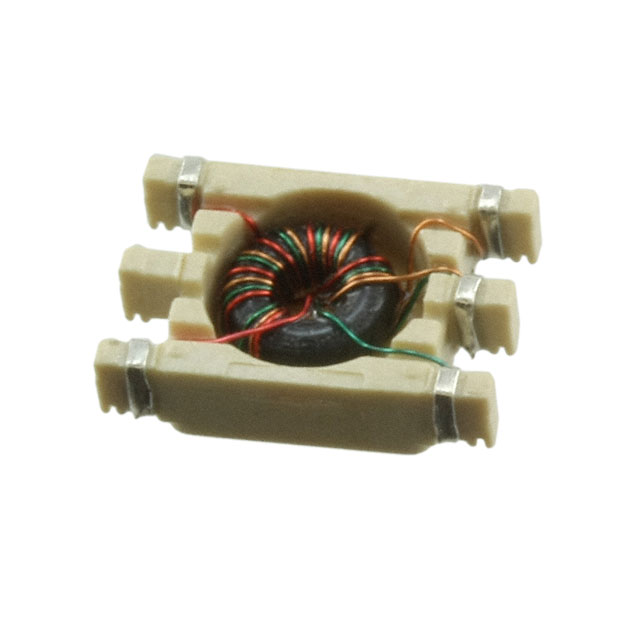

CX2032NL

Manufacturer :

Pulse Electronics

Product Category :

Balun

Mounting Feature :

Surface Mount

Manufacturer :

Pulse Electronics Corporation

Turns Ratio - Primary:Secondary :

1:2

Transformer Type :

RF TRANSFORMER

Operating Temperature (Max) :

85°C

ECCN Code :

EAR99

Impedance - Unbalanced/Balanced :

1:4

Height :

2.49mm

Published :

2011

Mounting Type :

Surface Mount

Length :

6.73mm

Packing Method :

Tube

Radiation Hardening :

No

Operating Temperature (Min) :

-40°C

Reach Compliance Code :

Compliant

Series :

-

Return Loss (Min) :

-

Insertion Loss (Max) :

0.6dB

Product Status :

Obsolete

Phase Difference :

-

Width :

9.14mm

RoHS Status :

RoHS Compliant

Package :

Tray

Additional Feature :

IMPEDANCE RATIO IS 1:4CT, CENTER TAPPED SECONDARY, BREADTH and HEIGHT DIM INCLUDE TERMINAL ALSO

Insertion Loss :

0.6 dB

Packaging :

Tray

Package / Case :

6-SMD

Physical Dimension :

L6.73XB9.14XH2.49 (mm)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Frequency Range :

5MHz~165MHz

Surface Mount :

yes

Mount :

Surface Mount
