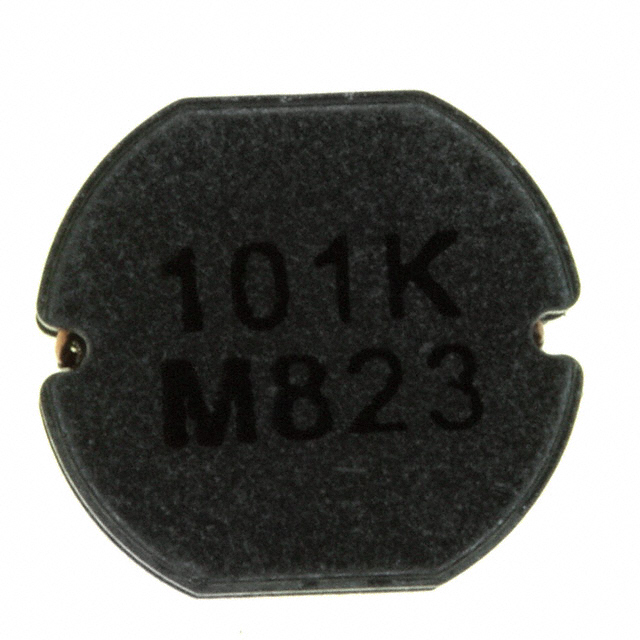

CD105NP-101KC

Manufacturer :

Sumida Corporation

Product Category :

Fixed Inductors

Frequency - Self Resonant :

7.64MHz

Height :

5.8mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Packing Method :

TR, 13 INCH

HTS Code :

8504.50.80.00

Case/Size Code :

3935

DC Resistance (DCR) :

350mOhm Max

Mount :

Surface Mount

Depth :

9.4mm

Factory Lead Time :

16 Weeks

Terminal Placement :

DUAL ENDED

Operating Temperature :

-40°C~100°C

Inductor Application :

POWER INDUCTOR

Max DC Current :

970mA

Terminal Shape :

ONE SURFACE

Package / Case :

Nonstandard

Military Standard :

Not

ECCN Code :

EAR99

Material - Core :

Ferrite

Published :

2010

Test Frequency :

1kHz

Series :

CD105

Current Rating :

970mA

Tolerance :

±10%

Mounting Type :

Surface Mount

Inductor Type :

GENERAL PURPOSE INDUCTOR

Height Seated (Max) :

0.228 5.80mm

DC Current :

970mA

RoHS Status :

ROHS3 Compliant

Shape/Size Description :

RECTANGULAR PACKAGE

Number of Terminations :

2

Weight :

1.299996g

Radiation Hardening :

No

Packaging :

Tape and Reel (TR)

Lead Free :

Lead Free

Shielding :

No

Number of Functions :

1

Size / Dimension :

0.394Lx0.354W 10.00mmx9.00mm

Pbfree Code :

yes

Inductance :

100μH
