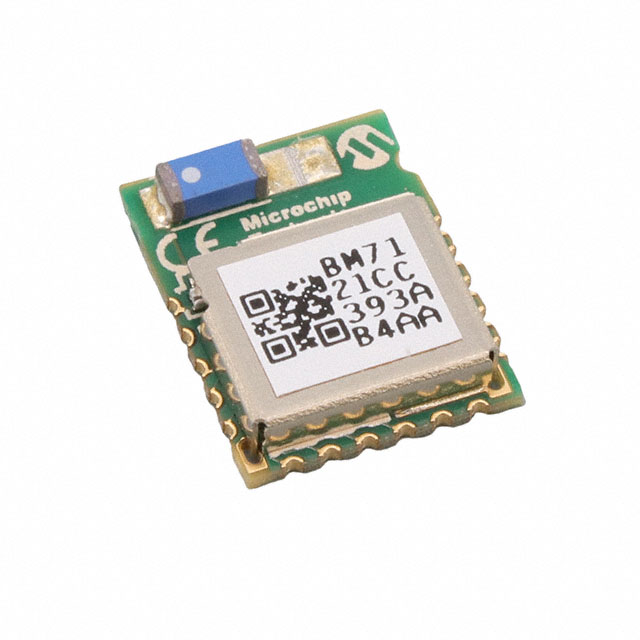

BM71BLES1FC2-0B04AA
Or copy the link below:
- Mfr.Part #
- BM71BLES1FC2-0B04AA
- Manufacturer
- Microchip Technology
- Package / Case
- 16-SMD Module
- Datasheet
- Download
- Description
- RX TXRX MOD BLUETOOTH CHIP SMD
- Stock
- 13,230
- In Stock ：
- 13,230
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Microchip Technology
- Product Category :
- RF Transceiver Modules and Modems
- Output Power :
- 0 dBm
- Base Part Number :
- BM71
- Temperature Grade :
- Industrial
- Protocol :
- Bluetooth v5.0
- Packaging :
- Tray
- Mounting :
- Surface Mount
- Frequency :
- 2.4GHz
- Width :
- 9mm
- Product Type :
- Bluetooth Modules
- Number of Channels :
- 39
- Screening Level :
- Industrial
- Minimum Operating Temperature :
- - 40 C
- Terminal Form :
- NO LEAD
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Telecom IC Type :
- TELECOM CIRCUIT
- Product Category :
- Bluetooth Modules - 802.15.1
- Package :
- Tray
- Current - Transmitting :
- 13mA
- Number of Functions :
- 1
- Power - Output :
- 0dBm
- Voltage - Supply :
- 1.9V~3.6V
- Package Shape :
- RECTANGULAR
- Mounting Style :
- SMD/SMT
- Surface Mount :
- yes
- Terminal Position :
- UNSPECIFIED
- Product Status :
- Active
- Memory Size :
- 24 kB, 32 kB, 256 kB
- Supply Voltage :
- 3V
- Length :
- 11.5mm
- Type :
- Bluetooth Low Energy Module
- RF Family/Standard :
- Bluetooth
- Reach Compliance Code :
- Compliant
- Number of Terminals :
- 16
- Operating Temperature :
- -40°C~85°C
- JESD-30 Code :
- R-XXMA-N16
- Operating Supply Voltage :
- 1.35 V
- Height Seated (Max) :
- 2.1mm
- Mounting Type :
- Surface Mount
- Antenna Connector Type :
- Integrated
- Dimensions :
- 12 mm x 15 mm x 2.4 mm
- Subcategory :
- Wireless and RF Modules
- Brand :
- Microchip Technology / Atmel
- Interface Type :
- Serial
- Modulation :
- -
- Maximum Data Rate :
- 8.6 kbps
- RoHS :
- Details
- Base Product Number :
- BM71
- Shielding :
- Shielded
- Class :
- Bluetooth Low Energy (BLE)
- Data Rate :
- 8.6 Mbps
- Sensitivity :
- -90dBm
- Series :
- BM71
- Height :
- 2.4 mm
- Serial Interfaces :
- UART
- Firmware Version :
- 1.11
- Frequency Range :
- 2.402 GHz to 2.48 GHz
- Utilized IC / Part :
- -
- Manufacturer :
- Microchip
- Maximum Operating Temperature :
- + 85 C
- Factory Lead Time :
- 16 Weeks
- Number of Terminations :
- 16
- Package / Case :
- 16-SMD Module
- Terminal Pitch :
- 1.2mm
- Antenna Type :
- Integrated, Chip
- Current - Receiving :
- 13mA
- Seated Height-Max :
- 2.1 mm
- Datasheets
- BM71BLES1FC2-0B04AA
BM71BLES1FC2-0B04AA Documents
2.4GHz Bluetooth -40°C~85°C 1.9V~3.6V UART Tray Integrated, Chip 8.6 Mbps 0dBm Bluetooth v5.0 -90dBm 16-SMD Module
BM71BLES1FC2-0B04AA Description
The BM71BLES1FC2-0B04AA module offers BLE solutions for embedded applications. It conforms to the Bluetooth 5 core specification to enhance the throughput and security of IoT applications. It also supports beacon technology to enhance the user experience for IoT applications and enables users to control the cloud and receive data without opening the application through a smartphone. The BM71BLES1FC2-0B04AA module has an integrated Bluetooth stack and is available in different form factors to optimize space, cost, and RF performance. The power-optimized design minimizes the current consumption and extends battery life for portable and wearable applications.
BM71BLES1FC2-0B04AA Features
Qualified for Bluetooth SIG v5.0 core specification
Certified to FCC, ISED, MIC, KCC, NCC, SRRC, and ANATEL radio regulations
Certified by European RED Assessed Radio module
Compliant to RoHS
Supports UART interface
Supports transparent UART data service of BLE
BM71BLES1FC2-0B04AA Applications
Internet of Things (IoT)
Secure Payment
Wearable Devices
Home and Security
Health and Fitness
Beacons
Industrial and Data Logger
