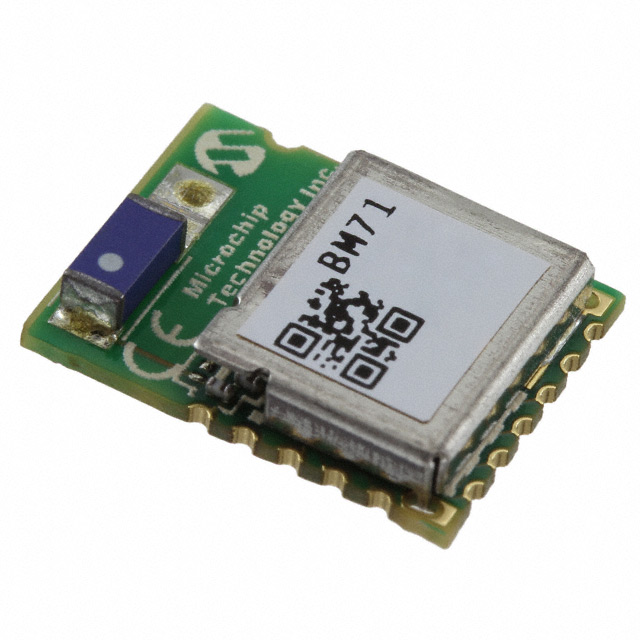

BM71BLES1FC2-0B02AA

Manufacturer :

Microchip Technology

Product Category :

RF Transceiver Modules and Modems

Manufacturer :

Microchip

RoHS :

Details

Terminal Pitch :

1.2mm

Frequency Range :

2.402 GHz to 2.48 GHz

Seated Height-Max :

2.1 mm

Power - Output :

2dBm

Class :

Bluetooth Low Energy (BLE)

Output Power :

0 dBm

Minimum Operating Temperature :

-20 °C

RoHS Status :

ROHS3 Compliant

Product Category :

Bluetooth Modules - 802.15.1

Operating Temperature :

-40°C~85°C

Maximum Operating Temperature :

+70 °C

Number of Channels :

40

Terminal Form :

NO LEAD

Brand :

Microchip Technology / Atmel

Firmware Version :

1.06

Product Status :

Active

Temperature Grade :

Industrial

Interface Type :

I2C, SPI, UART

Factory Lead Time :

16 Weeks

Product Type :

Bluetooth Modules

Length :

9mm

Mounting Type :

Surface Mount

Supplier Package :

SMD Module

Antenna Connector Type :

Integrated

Serial Interfaces :

UART

Number of Functions :

1

Package Shape :

RECTANGULAR

Mounting :

Surface Mount

Current - Receiving :

10mA~13mA

Frequency :

2.4GHz

RF Family/Standard :

Bluetooth

Sensitivity :

-90dBm

Utilized IC / Part :

--

Number of ADC Channels :

5

Protocol :

Bluetooth v5.0

Telecom IC Type :

TELECOM CIRCUIT

Memory Size :

--

Published :

2017

Base Part Number :

BM71

Number of Terminations :

16

Interface :

I2C, SPI, UART

Time@Peak Reflow Temperature-Max (s) :

30

Voltage - Supply :

1.9V~3.6V

Operating Frequency :

2402 to 2480 MHz

Dimensions :

11.5 x 9 x 2.1mm

Package / Case :

Module

Number of GPIO :

9

Surface Mount :

yes

Ambient Temperature Range High :

85°C

Pin Count :

16

Type :

Bluetooth Low Energy Module

Packaging :

Tray

Terminal Position :

UNSPECIFIED

Number of Terminals :

16

Mounting Style :

SMD/SMT

Base Product Number :

BM71

JESD-30 Code :

R-XXMA-N16

Current - Transmitting :

13mA

Width :

11.5mm

Supply Voltage :

3V

Data Rate :

8.6 kbps

Package :

Tray

Series :

--

Screening Level :

Industrial

Height :

2.1mm

Modulation :

--

Manufacturer Package Identifier :

BM71BLES1FC2-0B02AA

Reach Compliance Code :

Compliant

Operating Supply Voltage :

1.8, 3.6 V

Antenna Type :

Integrated, Chip

Peak Reflow Temperature (Cel) :

260

Pbfree Code :

yes

Subcategory :

Wireless and RF Modules

Moisture Sensitivity Level (MSL) :

1 (Unlimited)
