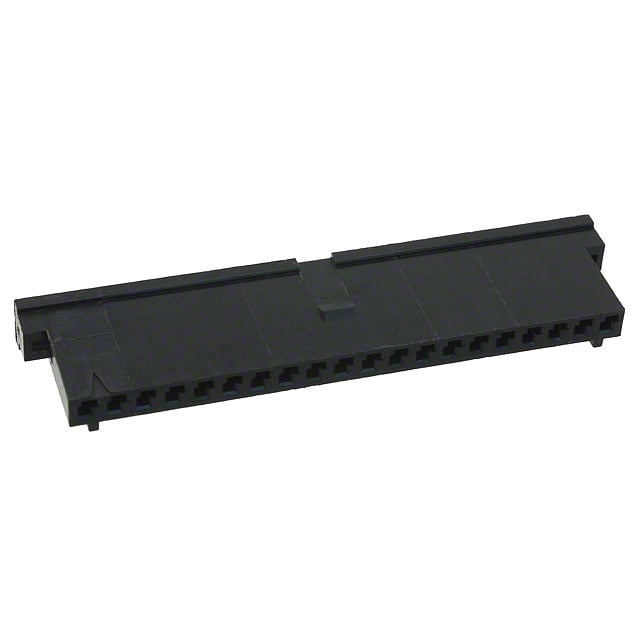

88859-8

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

FFC, FPC (Flat Flexible) Connector Housings

Mount :

Cable, Free Hanging

Body/Shell Style :

Receptacle

Contact Pattern :

RECTANGULAR

Gender :

FEMALE

Max Voltage Rating (AC) :

300V

Operating Supply Voltage :

300V

Mixed Contacts :

No

Number of Positions :

20

MIL Conformance :

No

IEC Conformance :

No

Length :

25.14mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pbfree Code :

yes

Pitch :

0.100 2.54mm

Housing Material :

Polybutylene Terephthalate (PBT), Glass Filled

Reference Standard :

UL, CSA

Operating Temperature :

-65°C~105°C

Insulation Resistance :

5GOhm

Sealable :

No

Locking Feature :

Detent Lock

Flat Flex Type :

FFC

Note :

Contacts Not Included

Published :

1997

Packaging :

Bulk

Connector Type :

Housing for Female Contacts

ELV :

Compliant

UL Flammability Code :

94V-0

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

FFC, FCB Thickness :

0.05-0.13mm

Lead Free :

Lead Free

Circuit Application :

Signal

Total Number of Contacts :

20

Housing Color :

Black

Current Rating (Amps) :

1.5A

Dielectric Withstanding Voltage :

750VAC V

Option :

GENERAL PURPOSE

Flammability Rating :

UL94 V-0

RoHS Status :

RoHS Compliant

Factory Lead Time :

8 Weeks

Material Flammability Rating :

UL94 V-0

Termination Type :

IDC

Mating Alignment :

With

Depth :

13.71mm

Wire/Cable Type :

Flat Flex

Orientation :

Straight

Current Rating :

2A

DIN Conformance :

No

Filter Feature :

No

Reliability :

COMMERCIAL

Number of Rows :

1
