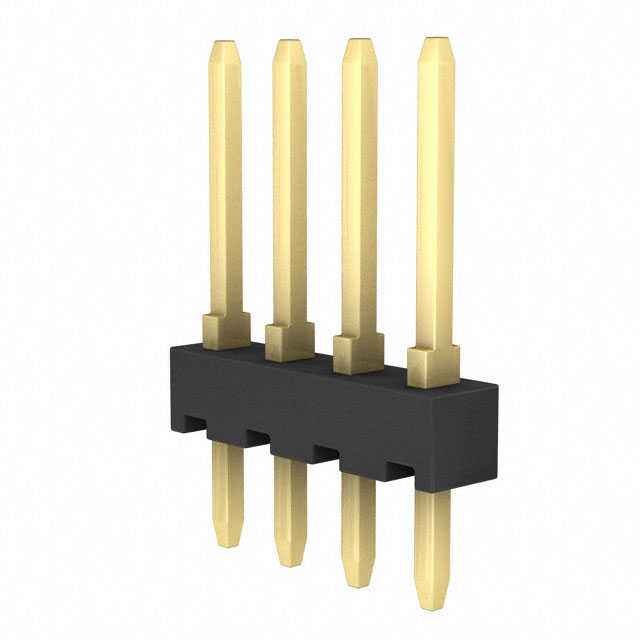

87220-4

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

Length :

9.75mm

Depth :

2.54mm

Plating Thickness :

30μin

Contact Current Rating :

3A

Insulation Height :

0.090 2.29mm

Contact Type :

Male Pin

REACH SVHC :

Unknown

Option :

GENERAL PURPOSE

Mixed Contacts :

No

DIN Conformance :

No

Insulation Material :

Thermoplastic

Packaging :

Bulk

Fastening Type :

Push-Pull

Contact Length - Mating :

0.318 8.08mm

Gender :

Male

Contact Finish Thickness - Mating :

30.0μin 0.76μm

Series :

AMPMODU Mod II

Shrouding :

Unshrouded

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Contact Finish - Mating :

Gold

Overall Contact Length :

0.533 13.55mm

ECCN Code :

EAR99

Reference Standard :

UL

Contact Finish Thickness - Post :

Flash

PCB Contact Pattern :

RECTANGULAR

Lead Free :

Lead Free

Current Rating :

3A

PCB Thickness :

1.397mm

Mounting Type :

Through Hole

Mount :

Through Hole

Lead Length :

3.175mm

IEC Conformance :

No

Style :

Board to Board or Cable

Number of Rows :

1

Material Flammability Rating :

UL94 V-0

MIL Conformance :

No

Pbfree Code :

yes

Approval Agency :

CSA

Contact Shape :

Square

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Row Spacing :

2.54 mm

Lifecycle Status :

ACTIVE (Last Updated: 1 day ago)

Reliability :

COMMERCIAL

Factory Lead Time :

17 Weeks

Number of Positions Loaded :

All

High Temperature Housing :

No

Published :

2006

Filter Feature :

No

Number of Positions :

4

Number of Conductors :

ONE

Termination :

Solder

Number Of PCB Rows :

1

Mating Post Length :

8.08mm

RoHS Status :

RoHS Compliant

Operating Temperature :

-65°C~105°C

Contact Material :

Phosphor Bronze

JESD-609 Code :

e4

PCB Mounting Orientation :

Vertical

Connector Type :

Header

Flammability Rating :

UL94 V-0

Housing Color :

Black

Contact Length - Post :

0.125 3.18mm

Pitch - Mating :

0.100 2.54mm
