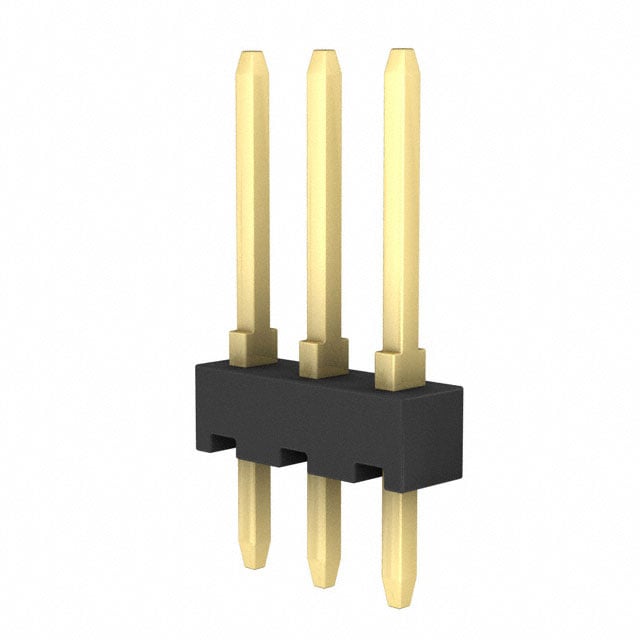

87220-3
- Mfr.Part #
- 87220-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 3POS 2.54MM
- Stock
- 13,569
- In Stock :
- 13,569
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Length :
- 7.21mm
- IEC Conformance :
- No
- Series :
- AMPMODU Mod II
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Row Spacing :
- 2.54 mm
- Material Flammability Rating :
- UL94 V-0
- RoHS Status :
- RoHS Compliant
- Contact Current Rating :
- 3A
- Termination :
- Solder
- Housing Color :
- Black
- Contact Finish - Mating :
- Gold
- Contact Finish Thickness - Post :
- Flash
- Reliability :
- COMMERCIAL
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Flammability Rating :
- UL94 V-0
- Reference Standard :
- UL
- PCB Contact Pattern :
- RECTANGULAR
- Number Of PCB Rows :
- 1
- Contact Length - Mating :
- 0.318 8.08mm
- Pitch - Mating :
- 0.100 2.54mm
- Number of Conductors :
- ONE
- Current Rating :
- 3A
- Number of Positions Loaded :
- All
- MIL Conformance :
- No
- High Temperature Housing :
- No
- Depth :
- 2.54mm
- Insulation Height :
- 0.090 2.29mm
- Packaging :
- Bulk
- PCB Mounting Orientation :
- Vertical
- Number of Positions :
- 3
- Gender :
- Male
- Option :
- GENERAL PURPOSE
- Contact Shape :
- Square
- Contact Material :
- Phosphor Bronze
- Factory Lead Time :
- 17 Weeks
- DIN Conformance :
- No
- Fastening Type :
- Push-Pull
- PCB Thickness :
- 1.397mm
- Mounting Type :
- Through Hole
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Contact Length - Post :
- 0.125 3.18mm
- Overall Contact Length :
- 0.533 13.55mm
- Approval Agency :
- CSA
- ECCN Code :
- EAR99
- ELV :
- Compliant
- Pbfree Code :
- yes
- Contact Type :
- Male Pin
- Connector Type :
- Header
- Published :
- 2008
- Shrouding :
- Unshrouded
- Operating Temperature :
- -65°C~105°C
- Filter Feature :
- No
- Mixed Contacts :
- No
- Mating Post Length :
- 8.08mm
- Insulation Material :
- Thermoplastic
- Lead Length :
- 3.175mm
- UL Flammability Code :
- 94V-0
- Mount :
- Through Hole
- Number of Rows :
- 1
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Style :
- Board to Board or Cable
- Lead Free :
- Lead Free
- Datasheets
- 87220-3

AMPMODU Mod II Series 1-Row Header Solder Phosphor Bronze Bulk Through Hole Gold Thermoplastic 3-Position Board to Board or Cable 0.090 2.29mm Height
87220-3 Overview
Currently, it is packaged in Header.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the AMPMODU Mod II Series, it belongs to the range of products of that series.Through Hole represents the mounting point for the part.-65°C~105°C Operating Temperature is the default operating temperature for the device.
87220-3 Features
AMPMODU Mod II series
87220-3 Applications
There are a lot of TE Connectivity AMP Connectors
87220-3 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
