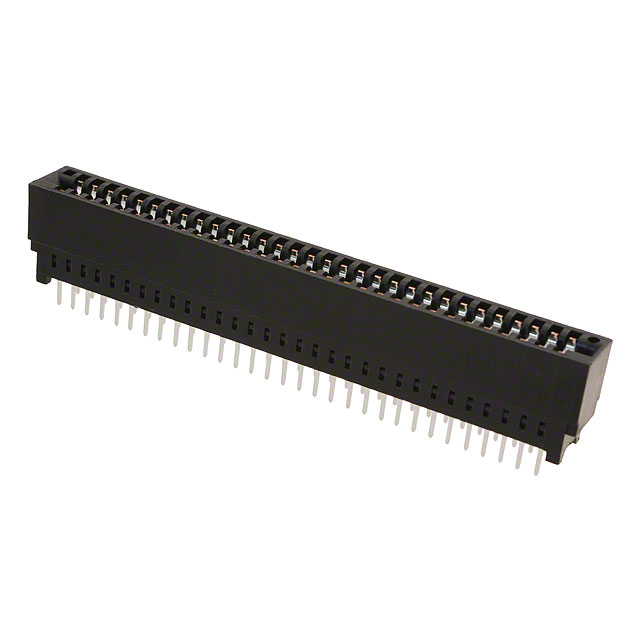

8-5530843-4

Share

Or copy the link below:

Mfr.Part #
8-5530843-4
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN EDGE DUAL FMALE 62POS 0.100
Stock
2,345
In Stock :
2,345

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Edgeboard Connectors
DIN Conformance :
No
Color :
Black
Option :
GENERAL PURPOSE
Termination :
Solder
IEC Conformance :
No
Contact Material :
Bronze
Plating Thickness :
30μin
Body Depth :
0.55 inch
Flammability Rating :
UL94 V-0
Total Number of Contacts :
31
Gender :
FEMALE
Number of Rows :
2
Pitch :
2.54mm
RoHS Status :
RoHS Compliant
Body/Shell Style :
Receptacle
Body Length or Diameter :
3.36 inch
Reference Standard :
UL
Contact Finish - Mating :
NOT SPECIFIED
PCB Mounting Orientation :
Vertical
Number of Positions :
62
Mixed Contacts :
No
ELV :
Compliant
Reliability :
COMMERCIAL
Max Operating Temperature :
85°C
Body Breadth :
0.368 inch
Contact Resistance :
10MOhm
Contact Style :
BELLOWED TYPE
Connector Type :
CARD EDGE CONNECTOR
Contact Plating :
Tin, Gold
PCB Contact Pattern :
RECTANGULAR
Mating Contact Row Spacing :
0.1 inch
MIL Conformance :
No
Underplate Material :
Nickel
Insulation Material :
Glass
PCB Contact Row Spacing :
3.81 mm
Number Of PCB Rows :
2
Dielectric Withstanding Voltage :
1400VAC V
Housing Material :
Polyester
Contact Pattern :
RECTANGULAR
Min Operating Temperature :
-55°C
Insulation Resistance :
5000000000Ohm
Card Thickness :
1.778mm
Rated Current (Signal) :
3A
Filter Feature :
No
Lead Length :
3.18mm
Packaging :
Bulk
Number of Conductors :
ONE
Mount :
Through Hole
Datasheets
8-5530843-4
Introducing Edgeboard Connectors TE Connectivity AMP Connectors 8-5530843-4 from Chip IC,where excellence meets affordability. This product stands out with its 8-5530843-4 pinout, 8-5530843-4 datasheet PDF, 8-5530843-4 amp .Beyond Edgeboard Connectors TE Connectivity AMP Connectors 8-5530843-4 ,we also offer SM3ZS067U215AER1500, 1759547-1, 1-2199230-6, Our vast inventory has you covered. Contact us now for immediate solutions.

TE Connectivity AMP Connectors 8-5530843-4


Female Black 2.54mm Bronze 2 Rows Bulk Solder 62 Positions

8-5530843-4 Overview


The material was packaged in accordance with Bulk's specifications.Using the connector socket CARD EDGE CONNECTOR is how the device is connected.Operating at a maximum temperature of 85°C°C ensures stable performance.For it to function properly, it must be maintained at a temperature of -55°C degrees Celsius at all times.

8-5530843-4 Features




8-5530843-4 Applications


There are a lot of TE Connectivity / AMP
8-5530843-4 Edgeboard Connectors applications.


  • Digital Multimeters, PLC's (Programming Logic Controllers)
  • RADAR processing, digital oscilloscopes
  • CMOS Image sensors for mobile applications
  • Medical Instrumentation and medical imaging
  • Music recording
  • Digital signal processing
  • Scientific instruments
  • Rotary encoder
  • Displaying
  • Transducer
